TLP2348(TPL,E

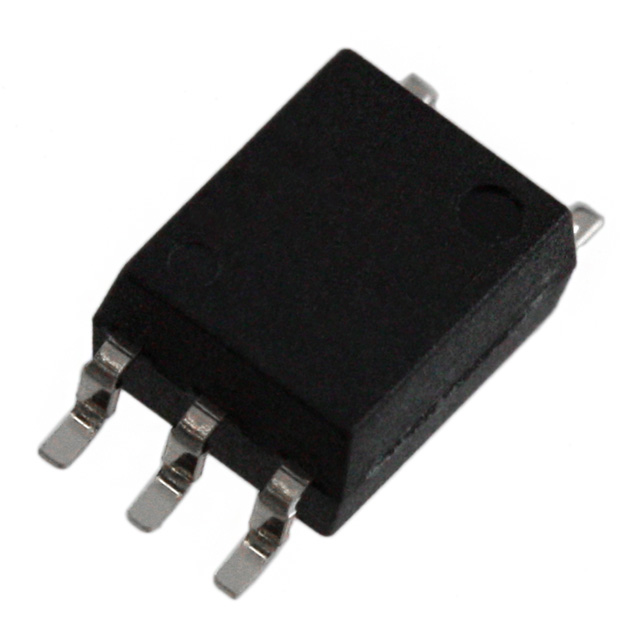

lmages are for reference only.TLP2348(TPL,E
HIGH SPEED LOGIC OUTPUT OPTOCOUP
Datasheet6-SOIC (0.179", 4.55mm Width), 5 Leads
74,347 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 10Mbps Push-Pull, Totem Pole 3750Vrms 1 Channel 30kV/µs CMTI 6-SO, 5 Lead
TLP2348(TPL,E
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 30kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 120ns, 120ns |
| Rise / Fall Time (Typ) | 3ns, 3ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 15mA |
| Voltage - Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
| Base Product Number | TLP2348 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | TLP2348(TPL,E | TLP2348(E | TLP2348(E | TLP2348(V4-TPL,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | HIGH SPEED LOGIC OUTPUT OPTOCOUP | HIGH SPEED LOGIC OUTPUT OPTOCOUP | HIGH SPEED LOGIC OUTPUT OPTOCOUP | HIGH SPEED LOGIC OUTPUT OPTOCOUP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
