TLP241A(D4,F
lmages are for reference only.TLP241A(D4,F
SSR RELAY SPST-NO 2A 0-40V
Datasheet4-DIP (0.300", 7.62mm)
85,321 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-DIP (0.300", 7.62mm)
TLP241A(D4,F
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP241A |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.27VDC |
| Voltage - Load | 0 V ~ 40 V |
| Load Current | 2 A |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Approval Agency | CSA, cUL, UL, VDE |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP241 |
| On-State Resistance (Max) | 150 mOhms |
| Product Attribute |  |
 |
 |
 |

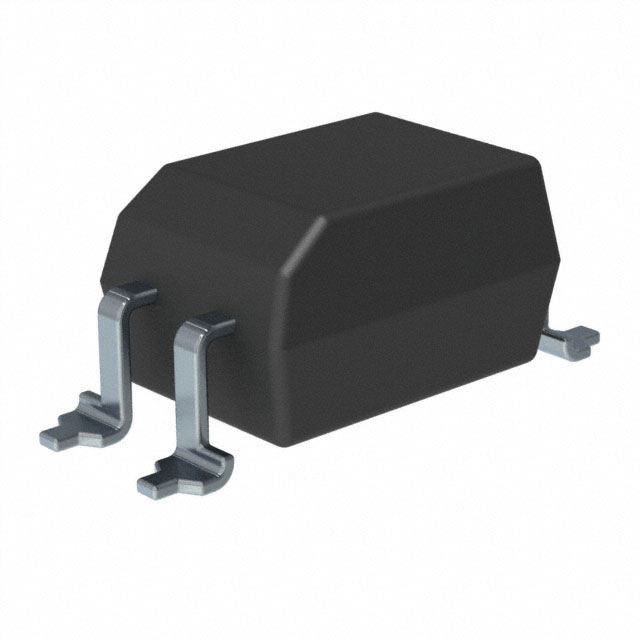

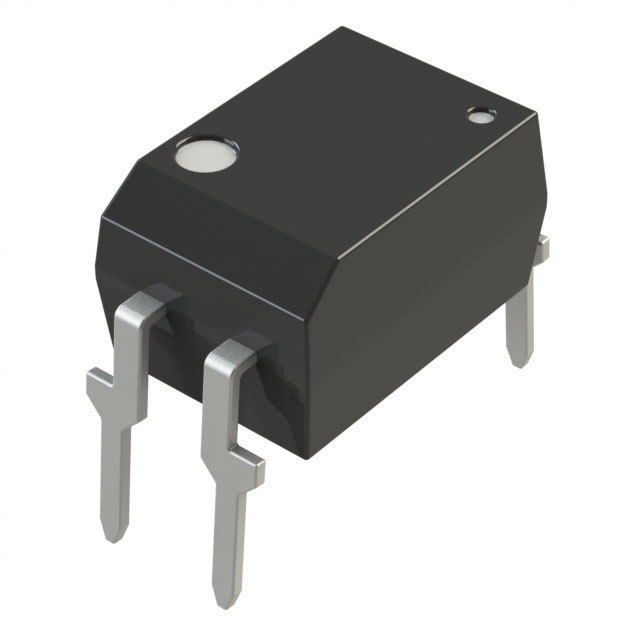

| Part Number | TLP241A(D4,LF1,F | TLP241A(D4,TP1,F | TLP241A(F | TLP241A(LF1,F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SSR RELAY SPST-NO 2A 0-40V | SSR RELAY SPST-NO 2A 0-40V | SSR RELAY SPST-NO 2A 0-40V | SSR RELAY SPST-NO 2A 0-40V |
| Series | TLP241A | TLP241A | TLP241A | TLP241A |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
