TLP241BP(E

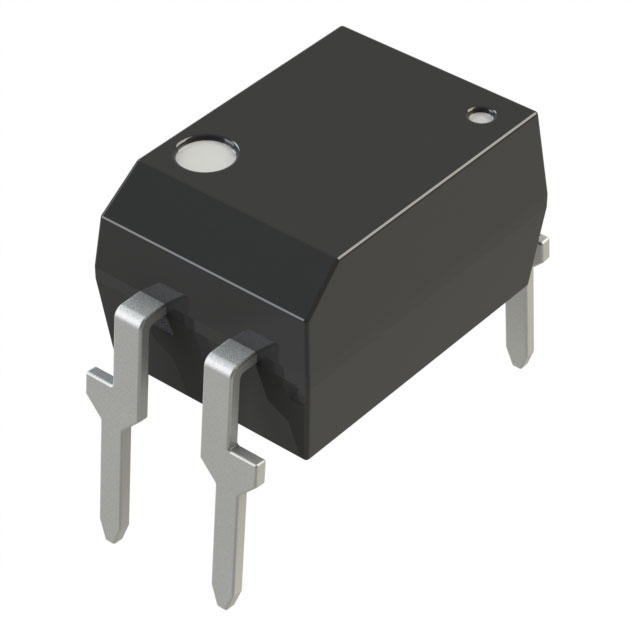

lmages are for reference only.TLP241BP(E
PHOTORELAY, OVP, OTP, ROHS
Datasheet4-DIP (0.300", 7.62mm)
74,059 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-DIP (0.300", 7.62mm)
TLP241BP(E
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP241BP |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | DC |
| Voltage - Input | 1.65VDC |
| Voltage - Load | 0 V ~ 80 V |
| Load Current | 1.4 A |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 110°C |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Approval Agency | cUR, UR, VDE |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| On-State Resistance (Max) | 280 mOhms |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP241BP(D4,E(O | TLP241BP(D4LF1,E | TLP241BP(D4LF5,E | TLP241BP(D4TP1,E(O |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PHOTORELAY; OVP; OTP; VDE, THROU | PHOTORELAY, OVP, OTP, ROHS; VDE | PHOTORELAY, OVP, OTP, ROHS; VDE | PHOTORELAY; OVP; OTP; VDE, SURFA |
| Series | TLP241BP | TLP241BP | TLP241BP | TLP241BP |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
