TLP250HF(LF4,F)
lmages are for reference only.TLP250HF(LF4,F)
OPTOCOUPLER 8DIP
Datasheet8-SMD, Gull Wing
21,504 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator Push-Pull, Totem Pole 3750Vrms 1 Channel 40kV/µs CMTI 8-SMD
TLP250HF(LF4,F)
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 2 A |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 5mA |
| Voltage - Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Base Product Number | TLP250 |
| Grade | - |
| Qualification | - |
| Product Attribute | |

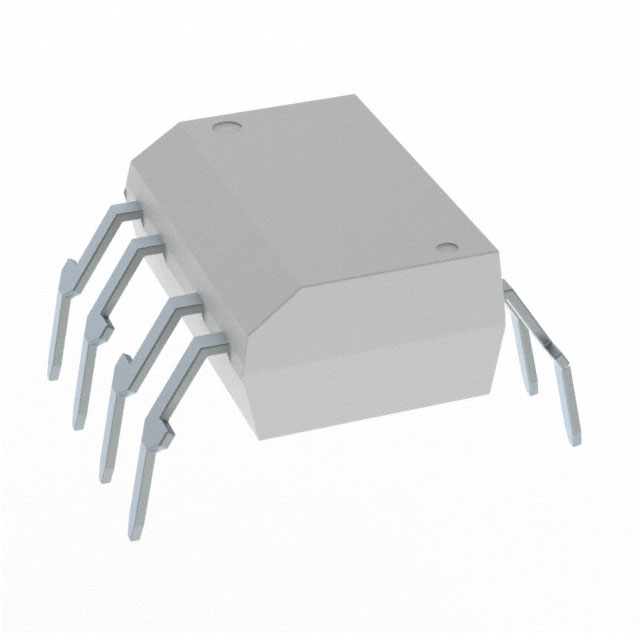

.jpg "TLP250HF(D4,F)") |
|

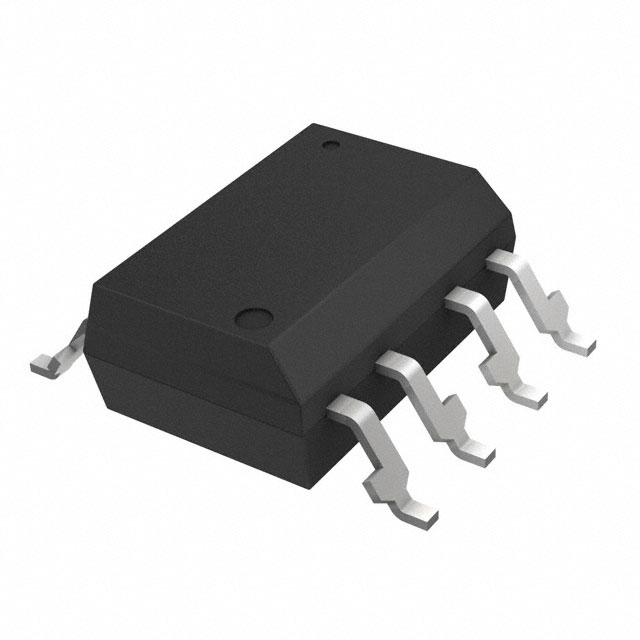

.jpg "TLP250HF(D4-LF4,F)") |
| Part Number | TLP250HF(LF4,F) | TLP250HF(D4,F) | TLP250HF(D4,F) | TLP250HF(D4-LF4,F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ||||
| Description | OPTOCOUPLER 8DIP | OPTOCOUPLER 8DIP | OPTOCOUPLER 8DIP | OPTOCOUPLER 8DIP SMD GW |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
