TLP266J(V4T7,E

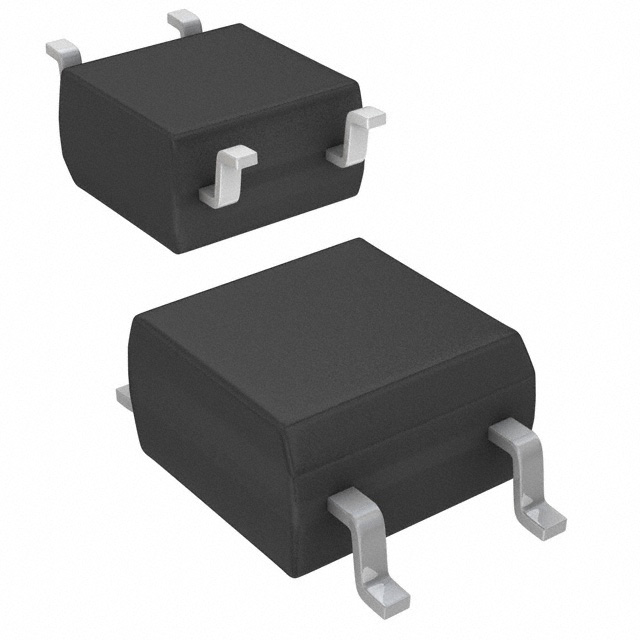

lmages are for reference only.TLP266J(V4T7,E
TRIAC COUPLER; ZC; 7MA TRIGGER C
Datasheet6-SOIC (0.173", 4.40mm Width), 4 Leads
59,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 3750Vrms 1 Channel 6-SOP
TLP266J(V4T7,E
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 200V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Turn On Time | 30µs |
| Voltage - Forward (Vf) (Typ) | 1.27V |
| Current - DC Forward (If) (Max) | 30 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads |
| Supplier Device Package | 6-SOP |
| Approval Agency | - |
| Base Product Number | TLP266 |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP266J(V4T7TL,E | TLP266J(V4T7TR,E | TLP266J(E | TLP266J(T7-TPL,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TRIAC COUPLER; ZC; 7MA TRIGGER C | TRIAC COUPLER; ZC; 7MA TRIGGER C | X36 PB-F PHOTOCOUPLER SO6 ROHS B | OPTOISOLATOR 3.75KV TRIAC 6SO 4L |
| Series | TLP | TLP | TLP | TLP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> |
