TLP2761(D4-TP4,E

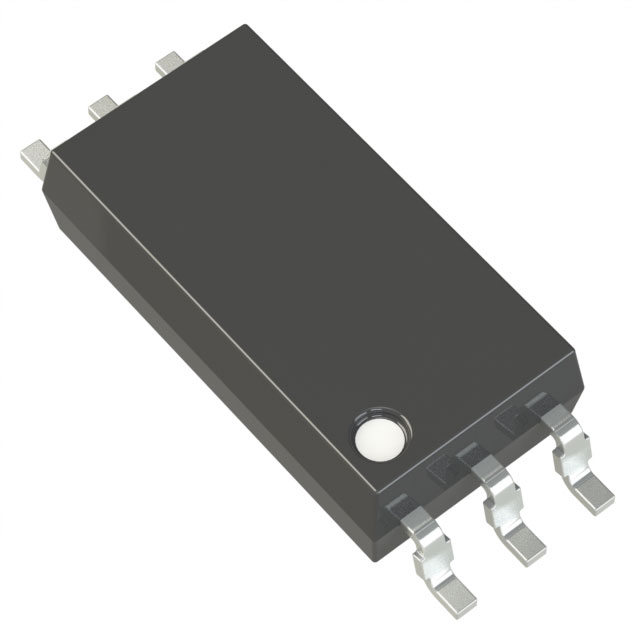

lmages are for reference only.TLP2761(D4-TP4,E
OPTOCOUPLER TRANS
Datasheet6-SOIC (0.295", 7.50mm Width)
67,867 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 15MBd 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
TLP2761(D4-TP4,E
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | AC, DC |
| Output Type | - |
| Current - Output / Channel | 10 mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns |
| Rise / Fall Time (Typ) | 3ns, 3ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 10mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
| Base Product Number | TLP2761 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | TLP2761(D4-TP,E | TLP2761(D4-TP,E | TLP2761(D4-TP4,E | TLP2761(D4,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | HIGH SPEED LOGIC OUTPUT OPTOCOUP | HIGH SPEED LOGIC OUTPUT OPTOCOUP | OPTOCOUPLER TRANS | HIGH SPEED LOGIC OUTPUT OPTOCOUP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tube |
