TLP2768A(D4,E

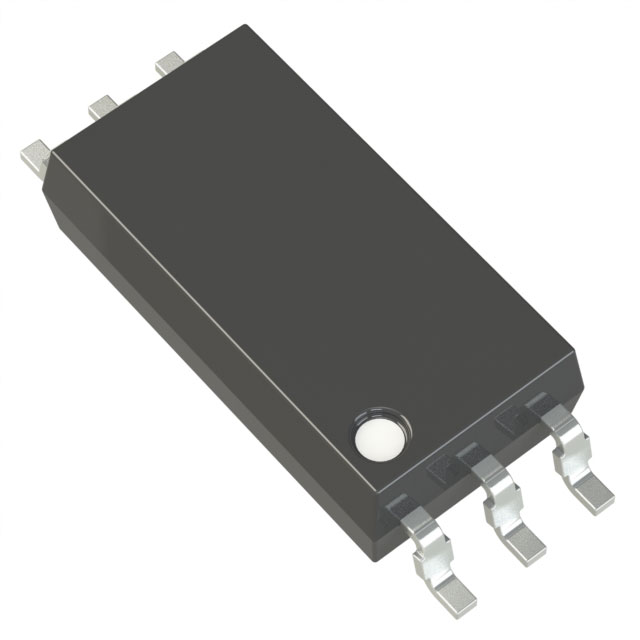

lmages are for reference only.TLP2768A(D4,E
OPTOISOLATOR SO6
Datasheet6-SOIC (0.295", 7.50mm Width)
79,762 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 20MBd Open Collector, Schottky Clamped 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
TLP2768A(D4,E
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 25 mA |
| Data Rate | 20MBd |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
| Base Product Number | TLP2768 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | TLP2768A(D4,E | TLP2768A(D4-TP,E | TLP2768A(D4-TP,E | TLP2768(D4-TP,F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ||||
| Description | OPTOISOLATOR SO6 | OPTOISOLATOR SO6 | OPTOISOLATOR SO6 | PHOTOCOUPLER |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
