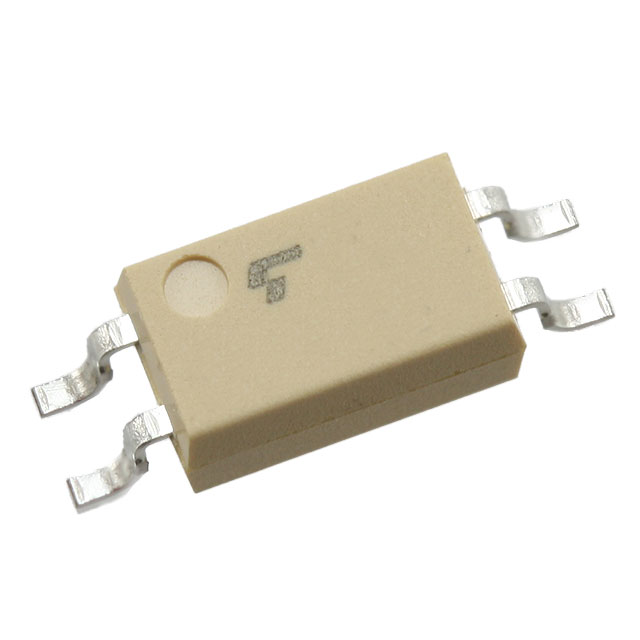

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SO
TLP291(GB,E)
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.179", 4.55mm Width) |
| Supplier Device Package | 4-SO |
| Base Product Number | TLP291 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
.jpg "TLP291(GB-TP,E)") |
 |
 |
| Part Number | TLP291(GB,SE | TLP291(GB-TP,E) | TLP291(GB-TP,SE | TLP291(BL-TP,SE |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 3.75KV TRANS 4-SO | OPTOISOLATOR 3.75KV TRANS 4-SO | OPTOISOLATOR 3.75KV TRANS 4-SO | OPTOISOLATOR 3.75KV TRANS 4-SO |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
