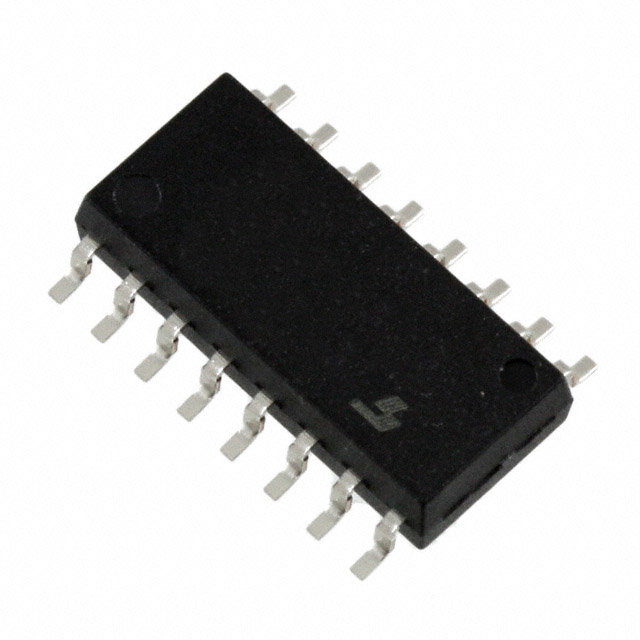

TLP292-4(LGB,E
lmages are for reference only.TLP292-4(LGB,E
OPTOISOLATOR 3.75KV TRANS SO16
Datasheet16-SOIC (0.179", 4.55mm Width)
49,655 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 4 Channel 16-SO
TLP292-4(LGB,E
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 4 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 500µA |
| Current Transfer Ratio (Max) | 600% @ 500µA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.179", 4.55mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | TLP292 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP292-4(LGBTP,E | TLP292-4(LGBTR,E | TLP292-4(4LGBTPE | TLP292-4(4LGBTRE |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 3.75KV TRANS SO16 | OPTOISOLATOR 3.75KV TRANS SO16 | OPTOISOLATOR 3.75KV TRANS SO16 | OPTOISOLATOR 3.75KV TRANS SO16 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
