TLP321-4SMT&R

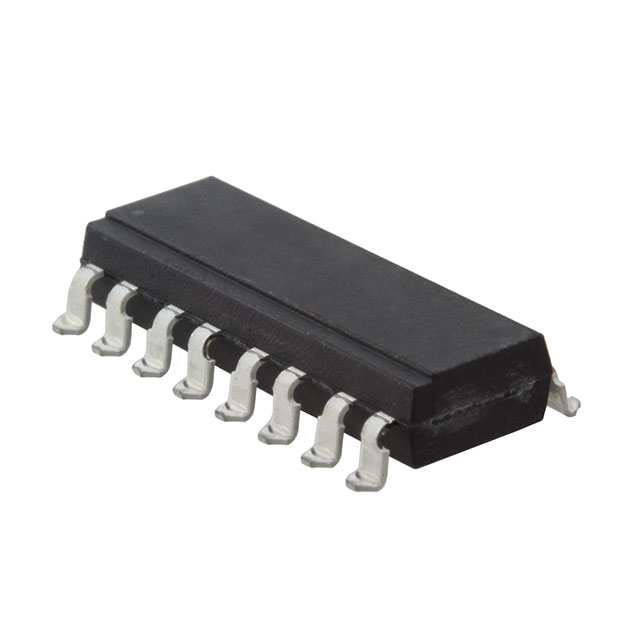

lmages are for reference only.TLP321-4SMT&R
16PIN TRANSISTOR OUTPUT, QUAD OP
Datasheet16-SMD, Gull Wing
57,786 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 4 Channel 16-SMD
TLP321-4SMT&R
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | TLP321-4 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD, Gull Wing |
| Supplier Device Package | 16-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP321-4SM | TLP321-2 | TLP321-2BL | TLP321-2BLG |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 16PIN TRANSISTOR OUTPUT, QUAD OP | OPTOISO 5.3KV 2CH TRANS 8DIP | 8PIN TRANSISTOR OUTPUT, DUAL CHA | 8PIN TRANSISTOR OUTPUT, DUAL CHA |
| Series | TLP321-4 | - | TLP321-2 | TLP321-2 |
| Packaging | Tube | Tube | Tube | Tube |
