TLP4590A(TP1,F
lmages are for reference only.TLP4590A(TP1,F
SSR RELAY SPST-NC 1.2A 0-60V
Datasheet6-SMD, Gull Wing
91,956 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NC (1 Form B) 6-SMD, Gull Wing
TLP4590A(TP1,F
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NC (1 Form B) |
| Output Type | AC, DC |
| Voltage - Input | 1.27VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 1.2 A |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 110°C |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | - |
| Approval Agency | - |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP459 |
| On-State Resistance (Max) | 600 mOhms |
| Product Attribute |  |
 |
 |
 |

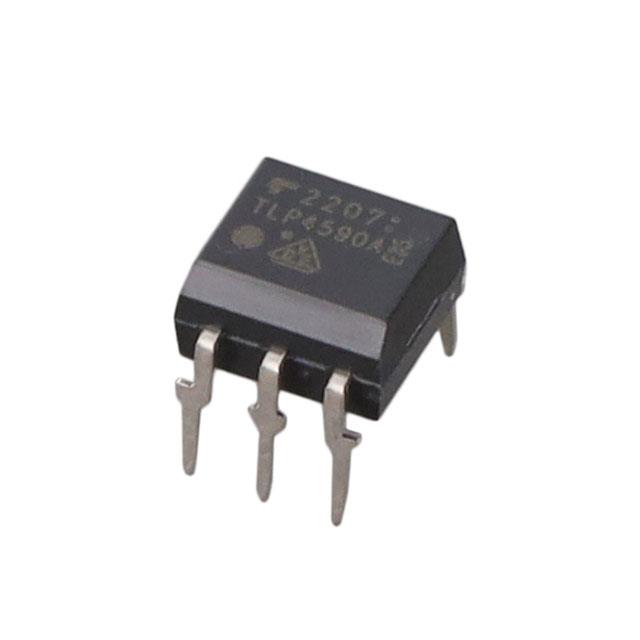

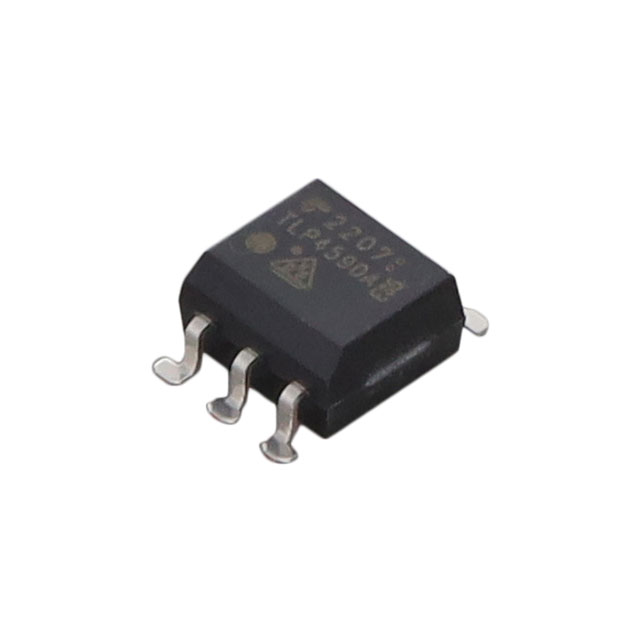

| Part Number | TLP4590A(TP5,F | TLP4590A(D4,F | TLP4590A(D4LF1,F | TLP4590A(D4LF5,F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SSR RELAY SPST-NC 1.2A 0-60V | SSR RELAY SPST-NC 1.2A 0-60V | SSR RELAY SPST-NC 1.2A 0-60V | SSR RELAY SPST-NC 1.2A 0-60V |
| Series | TLP4590A | TLP4590A | TLP4590A | TLP4590A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tube |
Recommended Products

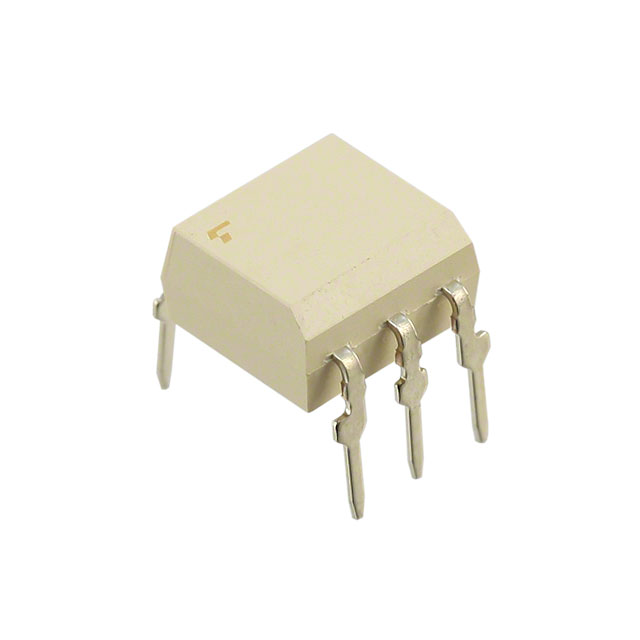

.jpg "TLP4597G(F)")
