TLP5701(D4,E

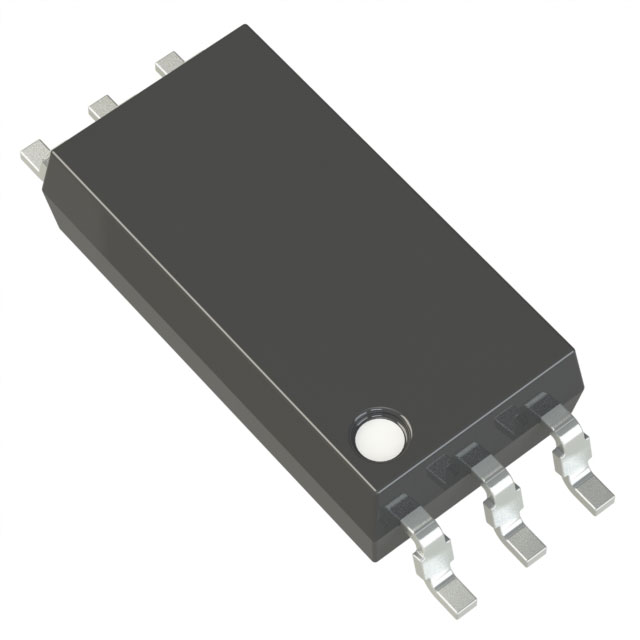

lmages are for reference only.TLP5701(D4,E
X36 PB-F DRIVER COUPLER 0.6A SO6
Datasheet6-SOIC (0.295", 7.50mm Width)
62,546 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 20kV/µs CMTI 6-SO
TLP5701(D4,E
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 600 mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Voltage - Forward (Vf) (Typ) | 1.57V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 10V ~ 30V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
| Base Product Number | TLP5701 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | TLP5701(D4,E | TLP5701(D4-TP,E | TLP5701(D4-TP,E | TLP5701(E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | X36 PB-F DRIVER COUPLER 0.6A SO6 | X36 PB-F DRIVER COUPLER 0.6A SO6 | X36 PB-F DRIVER COUPLER 0.6A SO6 | X36 PB-F DRIVER COUPLER 0.6A SO6 |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
