TLP620-4GB

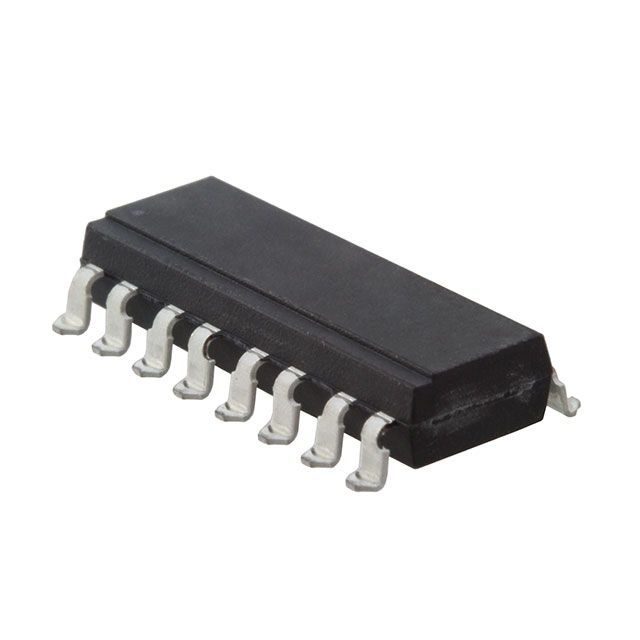

lmages are for reference only.TLP620-4GB
16PIN AC INPUT, QUAD OPTOCOUPLER
Datasheet16-DIP (0.400", 10.16mm)
68,594 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 4 Channel 16-DIP
TLP620-4GB
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | TLP620-4 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | AC, DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.400", 10.16mm) |
| Supplier Device Package | 16-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TLP620-4G | TLP620-4GBG | TLP620-4GBSM | TLP620-4GBSMT&R |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 16PIN AC INPUT, QUAD OPTOCOUPLER | 16PIN AC INPUT, QUAD OPTOCOUPLER | 16PIN AC INPUT, QUAD OPTOCOUPLER | 16PIN AC INPUT, QUAD OPTOCOUPLER |
| Series | TLP620-4 | TLP620-4 | TLP620-4 | TLP620-4 |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
