TLP627M(D4,E
lmages are for reference only.TLP627M(D4,E
OPTOIOSOLATOR DARLINGTON 4DIP
Datasheet4-DIP (0.300", 7.62mm)
73,525 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Darlington Output 5000Vrms 1 Channel 4-DIP
TLP627M(D4,E
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 1000% @ 1mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 110µs, 30µs |
| Rise / Fall Time (Typ) | 60µs, 30µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 300V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1.2V |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Base Product Number | TLP627 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

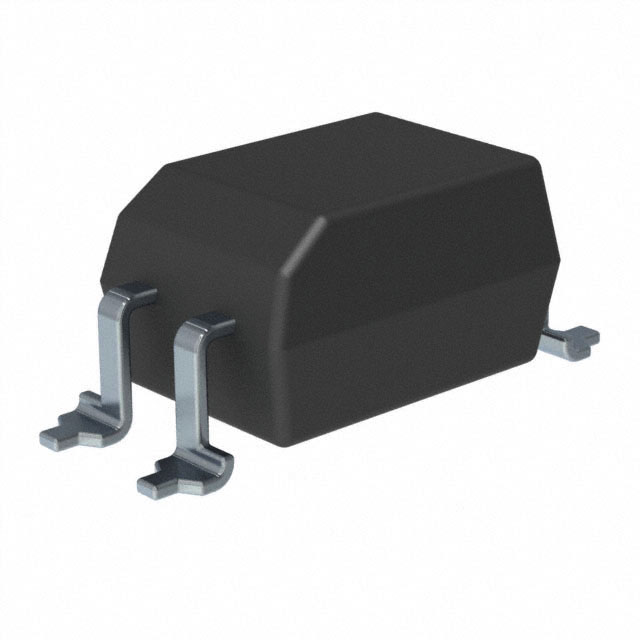

| Part Number | TLP627M(D4-LF1,E | TLP627M(D4-LF5,E | TLP627M(D4-TP1,E | TLP627M(D4-TP5,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | |||
| Description | DC INPUT PHOTOCOUPLER; DIP4; VDE | DC INPUT PHOTOCOUPLER; DIP4; VDE | DC INPUT PHOTOCOUPLER; DIP4; ; V | DC INPUT PHOTOCOUPLER; DIP4; ; V |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
