TLP700H(D4-MBSTP,F

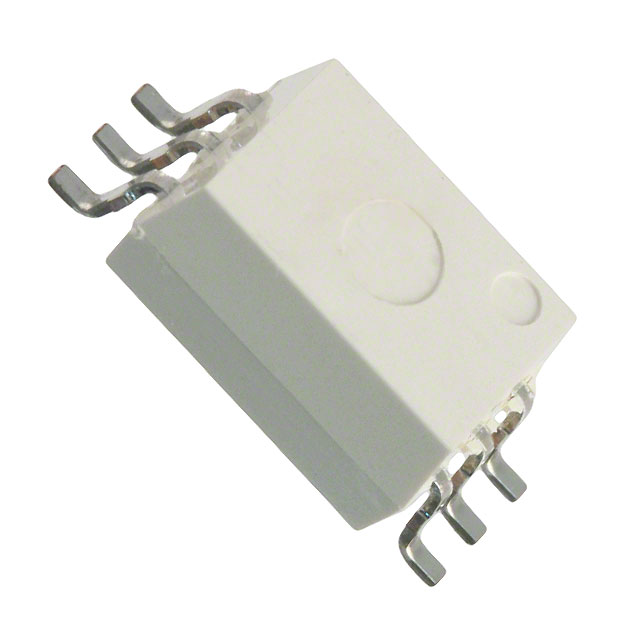

lmages are for reference only.TLP700H(D4-MBSTP,F
OPTOISO 5KV 2CH GATE DVR 6SDIP
Datasheet6-SOIC (0.268", 6.80mm Width)
32,278 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2A Gate Driver Optical Coupling 5000Vrms 2 Channel 6-SDIP
TLP700H(D4-MBSTP,F
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Optical Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 250ns |
| Rise / Fall Time (Typ) | 15µs, 8µs |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2A |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Voltage - Output Supply | 15V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP |
| Approval Agency | CSA, cUL, UL, VDE |
| Base Product Number | - |
| Current - DC Forward (If) (Max) | 20 mA |
| Product Attribute | |
.jpg "TLP700H(F)") |
|
.jpg "TLP151A(E)") |
| Part Number | TLP700H(D4-TP,F) | TLP700H(F) | TLP700H(TP,F) | TLP151A(E) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ||
| Description | OPTOISO 5KV 2CH GATE DVR 6SDIP | OPTOISO 5KV 1CH GATE DVR 6SDIP | OPTOISO 5KV 2CH GATE DVR 6SDIP | OPTOISO 3.75KV 1CH GT DVR 6SO-5 |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Bulk | Tube | Bulk | Tube |
