TLR3A30WR075FTDG

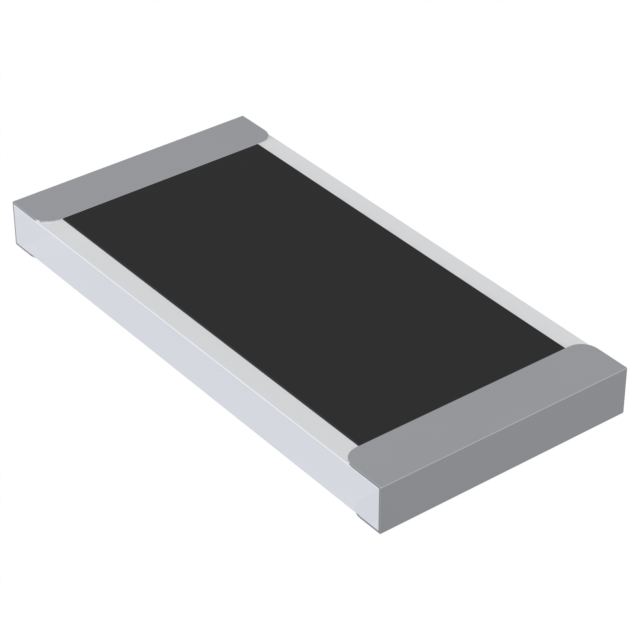

lmages are for reference only.TLR3A30WR075FTDG
RES 0.075 OHM 1% 3W 2512
Datasheet2512 (6432 Metric)
58,647 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
75 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Current Sense Metal Foil
TLR3A30WR075FTDG
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TE Connectivity Passive Product |
| Series | TLR, CGS |
| Resistance | 75 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | - |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | TLR3A30 |
| Product Attribute |  |
 |
|
 |
| Part Number | TLR3A30WR010FTDG | TLR3A30WR015FTDG | TLR3A30WR018FTDG | TLR3A30WR030FTDG |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.01 OHM 1% 3W 2512 | RES 0.015 OHM 1% 3W 2512 | RES 0.018 OHM 1% 3W 2512 | RES 0.03 OHM 1% 3W 2512 |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
