TLSTLS0214PB
lmages are for reference only.TLSTLS0214PB
LS T SLOW STP ADJ.ROLLER LEVER 4
Datasheet-
11,446 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch DPST-NC Chassis Mount
TLSTLS0214PB
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | TLS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Circuit | DPST-NC |
| Switch Function | On-On |
| Current Rating (Amps) | 4A (AC), 1A (DC) |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Side Rotary, Adjustable Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Electrical Life | - |
| Mechanical Life | 20,000,000 Cycles |
| Features | - |
| Operating Force | 20gf |
| Release Force | - |
| Operating Position | - |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -30°C ~ 80°C |
| Product Attribute |  |
 |
 |
 |

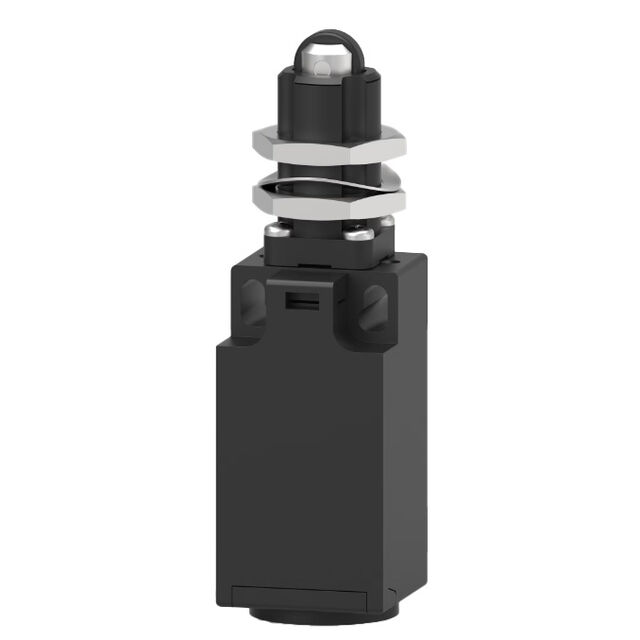

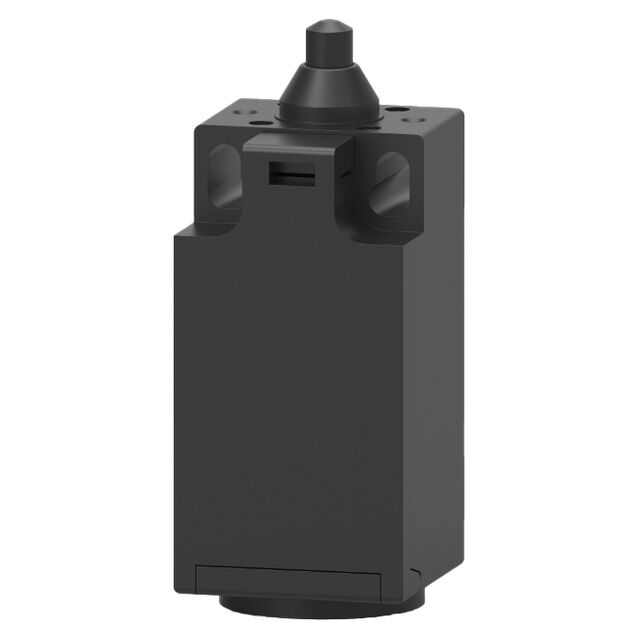

| Part Number | TLSTLS0201PD | TLSTLS0202PD | TLSTLS0204PD | TLSTLS1101PD |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LS T SLOW PLUNGER 4A 2 NC | LS T SLOW ROLLER 4A 2NC | LS T SLOW ROLLER CENTRAL MOUNT 4 | LS T SLOW PLUNGER 4A 1NO + 1NC |
| Series | TLS | TLS | TLS | TLS |
| Packaging | Box | Box | Box | Box |
