TLSZLS0204PD
lmages are for reference only.TLSZLS0204PD
LS Z SLOW ROLLER CENTRAL MOUNT 4
Datasheet-
94,401 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch DPST-NC Chassis Mount
TLSZLS0204PD
| Category | Switches - Limit Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | TLS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Circuit | DPST-NC |
| Switch Function | On-On |
| Current Rating (Amps) | 4A (AC), 1A (DC) |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Roller Plunger |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Electrical Life | - |
| Mechanical Life | 20,000,000 Cycles |
| Features | - |
| Operating Force | 918gf |
| Release Force | - |
| Operating Position | - |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -30°C ~ 80°C |
| Product Attribute |  |
 |
 |
 |

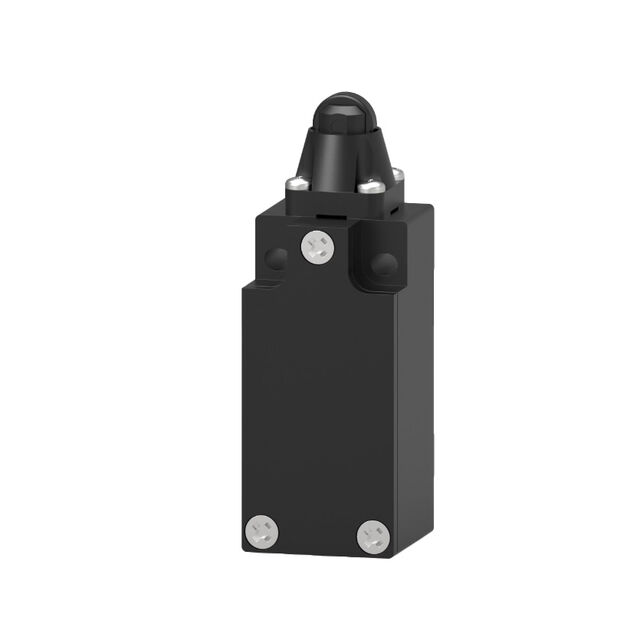

| Part Number | TLSZLS0201SD | TLSZLS0202PD | TLSZLS0203SD | TLSZLS0206PR |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LS Z SLOW PLUNGER 4A 2 NC | LS Z SLOW ROLLER 4A 2 NC | LS Z SLOW PLUNGER CENTRAL MOUNT | LS Z SLOW OFFSET ROLLER V2 4A 2 |
| Series | TLS | TLS | TLS | TLS |
| Packaging | Box | Box | Box | Box |
