TLV4021S5YKAR
lmages are for reference only.TLV4021S5YKAR
IC COMPARATR 1 W/VOLT REF 4DSBGA
Datasheet4-XFBGA, DSBGA
10,700 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Comparator with Voltage Reference Open-Drain, Rail-to-Rail 4-DSBGA
TLV4021S5YKAR
| Category | Integrated Circuits (ICs) - Linear - Comparators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | with Voltage Reference |
| Number of Elements | 1 |
| Output Type | Open-Drain, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 1.6V ~ 5.5V |
| Voltage - Input Offset (Max) | - |
| Current - Input Bias (Max) | 1.6µA @ 5V |
| Current - Output (Typ) | 55mA @ 5V |
| Current - Quiescent (Max) | 3.5µA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 2µs |
| Hysteresis | 5mV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 4-XFBGA, DSBGA |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-DSBGA |
| Base Product Number | TLV4021 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

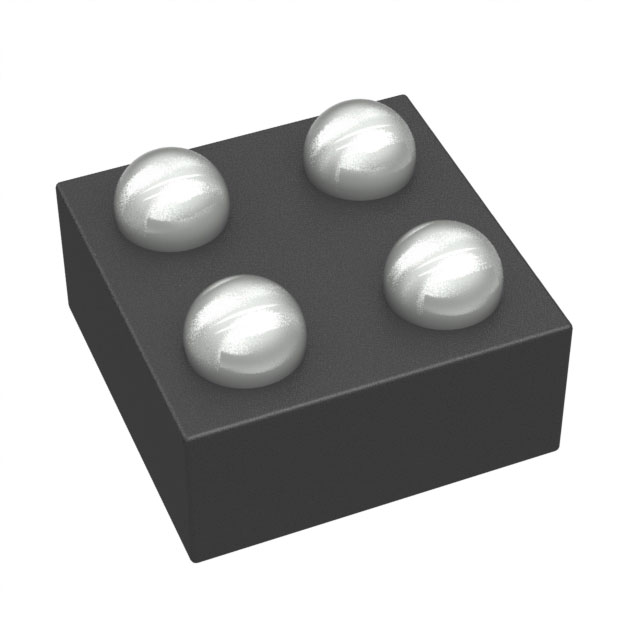

| Part Number | TLV4021R1YKAR | TLV4021R2YKAR | TLV4021S5MYKAR | TLV7081YKAR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | IC COMPARATR 1 W/VOLT REF 4DSBGA | IC COMPARATR 1 W/VOLT REF 4DSBGA | IC COMPARATOR 1 GEN PUR 4DSBGA | IC COMPARATOR 1 GEN PUR 4DSBGA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
