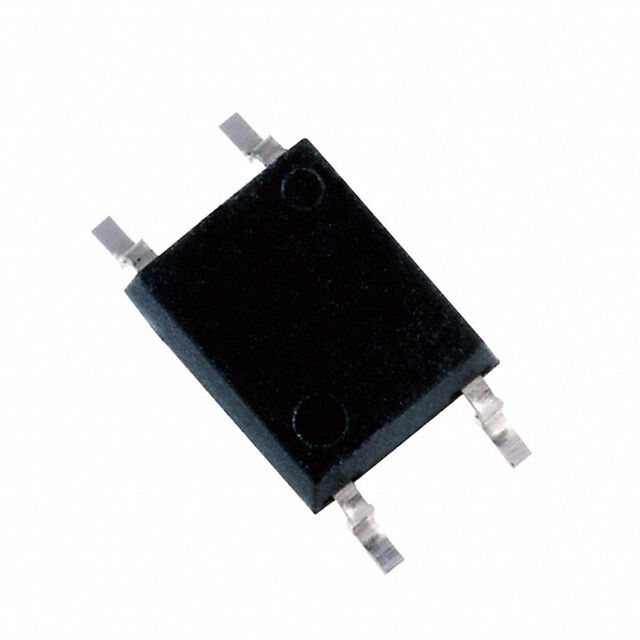

TLX9309(TPL,F
lmages are for reference only.TLX9309(TPL,F
IC COUPLER; 4-PIN SO6; AECQ; ROH
Datasheet6-SOIC (0.179", 4.55mm Width), 5 Leads
76,635 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 6-SO, 5 Lead
TLX9309(TPL,F
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 15% @ 7mA |
| Current Transfer Ratio (Max) | 300% @ 7mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | - |
| Current - Output / Channel | 25mA |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 15 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
| Base Product Number | TLX9309 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

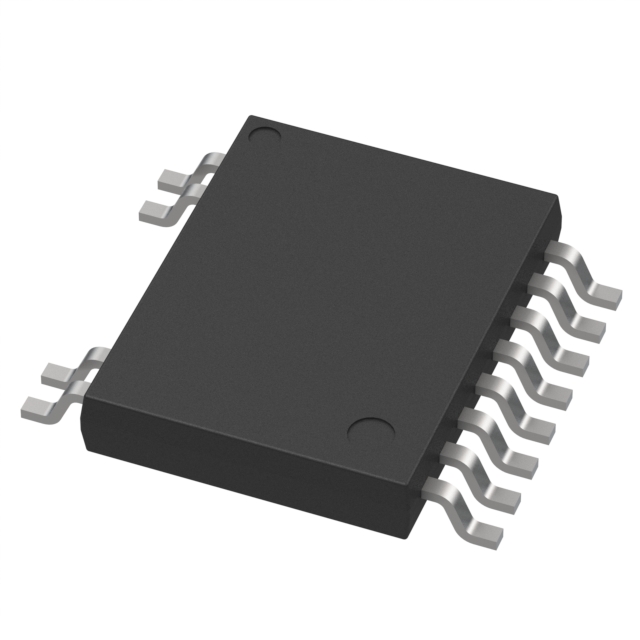

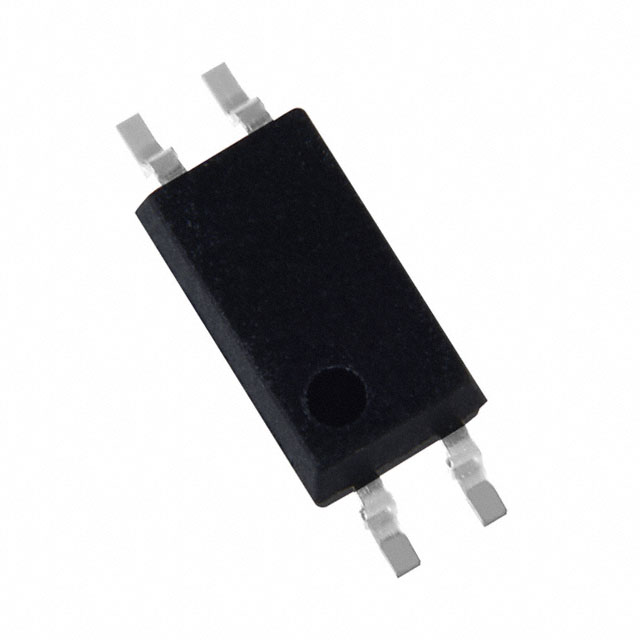

| Part Number | TLX9000(TPL,F | TLX9160T(TPL,F | TLX9175J(TPL,F | TLX9185(KMGBTL,F(O |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | |||
| Description | TR COUPLER; SO4; AECQ; ROHS; T&R | OPTOISO 5KV MOSFET 16SO | OPTOISO 3.75KV MOSFET S06 | PHOTOCOUPLER |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
