TLZ36-GS08
lmages are for reference only.TLZ36-GS08
DIODE ZENER 36V 500MW SOD80
DatasheetDO-213AC, MINI-MELF, SOD-80
12,246 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 36 V 500 mW Surface Mount SOD-80 MiniMELF
TLZ36-GS08
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TLZ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 36 V |
| Tolerance | - |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 75 Ohms |
| Current - Reverse Leakage @ Vr | - |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 MiniMELF |
| Base Product Number | TLZ36 |
| Product Attribute |  |
 |
 |
 |

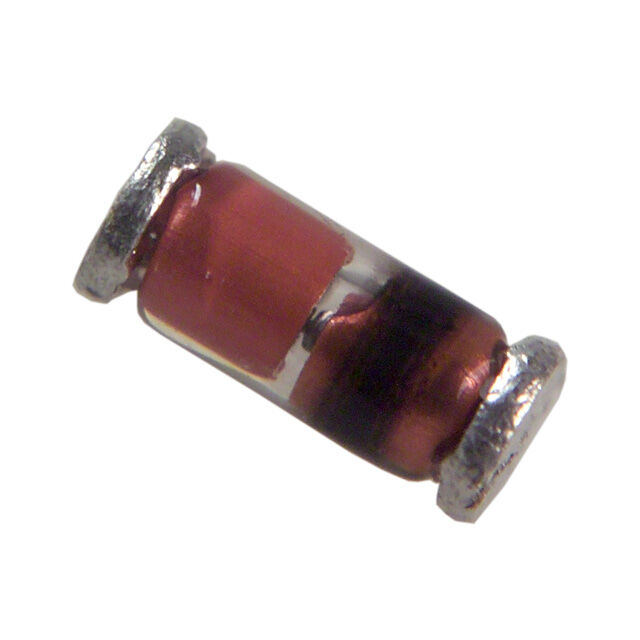

| Part Number | TLZ36-GS18 | TLZ30-GS08 | TLZ30-GS18 | TLZ30A-GS08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 36V 500MW SOD80 | DIODE ZENER 30V 500MW SOD80 | DIODE ZENER 30V 500MW SOD80 | DIODE ZENER 30V 500MW SOD80 |
| Series | TLZ | TLZ | TLZ | TLZ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
