Product CatalogPart Number
TM5004NL
Manufacturer
Taoglas LimitedDescription
LAN XFMR 1G BASE-T SINGLE
Datasheet
DatasheetPackage
-
In Stock
86,694 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TM5004NL
TM5004NL
lmages are for reference only.Payment Methods
Delivery Services
350µH LAN 1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Quick Inquiry
TM5004NL
Specifications
| Category | Transformers - Pulse Transformers - |
| Manufacturer | Taoglas Limited |
| Series | Exos |
| Packaging | Cut Tape (CT)-->Tray |
| RoHS Status | ROHS3 Compliant |
| Transformer Type | LAN 1000 Base-T |
| Inductance | 350µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.715" L x 0.480" W (18.16mm x 12.20mm) |
| Height - Seated (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Weight | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

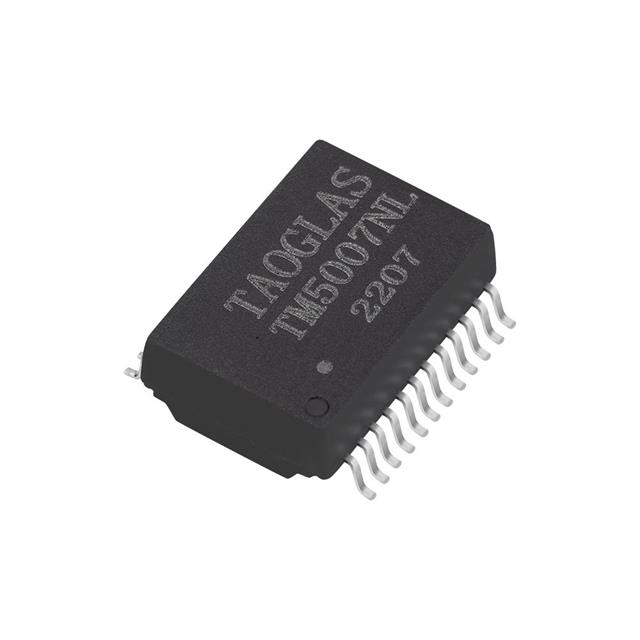

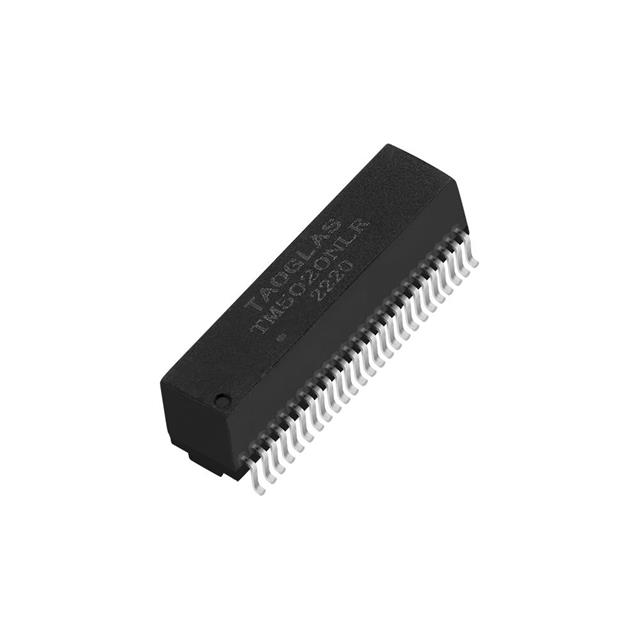

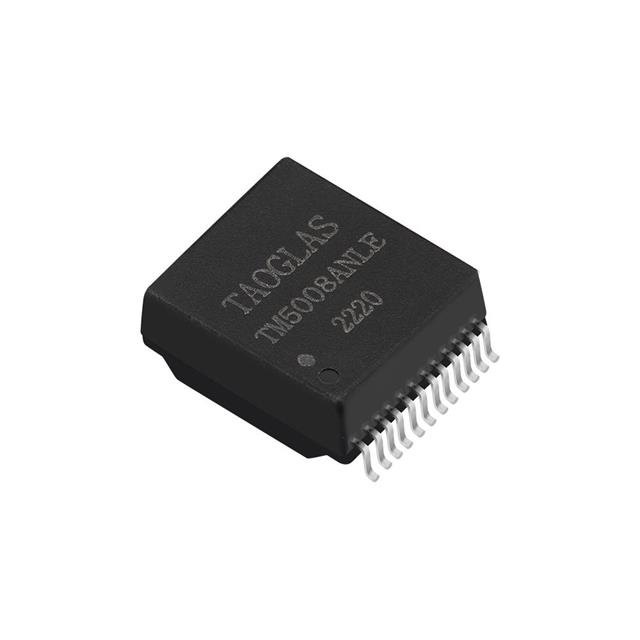

| Part Number | TM5007NL | TM5008ANLE | TMYB1-391NL | TM5020NLR |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LAN XFMR 1G BASE-T SINGLE | LAN XFMR 1G BASE-T SINGLE | BMS TRANSFORMERS WITH CMC, 12 PI | LAN XFMR 1G BASE-T DUAL |
| Series | Exos | Exos | - | Exos |
| Packaging | Cut Tape (CT)-->Tray | Cut Tape (CT)-->Tray | Bulk | Cut Tape (CT)-->Tray |
