TMAF 0301S-1R0MN
lmages are for reference only.TMAF 0301S-1R0MN
1.0 UH SHIELDED MOLDED INDUCTOR
DatasheetNonstandard
81,507 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Molded Inductor 56.4mOhm Max Nonstandard
TMAF 0301S-1R0MN
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | TMAF0301S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Alloy Powder |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 4.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 56.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.130" L x 0.122" W (3.30mm x 3.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

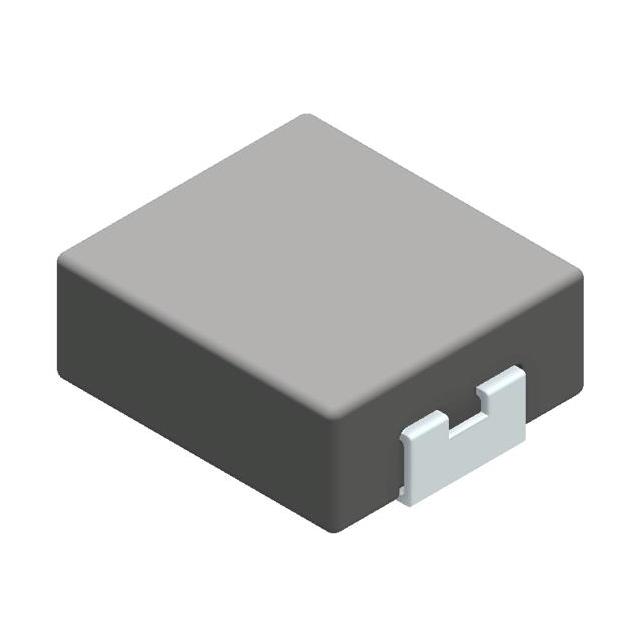

| Part Number | TMAF 0301S-2R2MN | TMAF 0301S-3R3MN | TMAF 0301S-4R7MN | TMAF 0301S-R47MN |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2.2 UH SHIELDED MOLDED INDUCTOR | 3.3 UH SHIELDED MOLDED INDUCTOR | 4.7 UH SHIELDED MOLDED INDUCTOR | 470 NH SHIELDED MOLDED INDUCTOR |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
