TMIM0402S-1R2MG-D

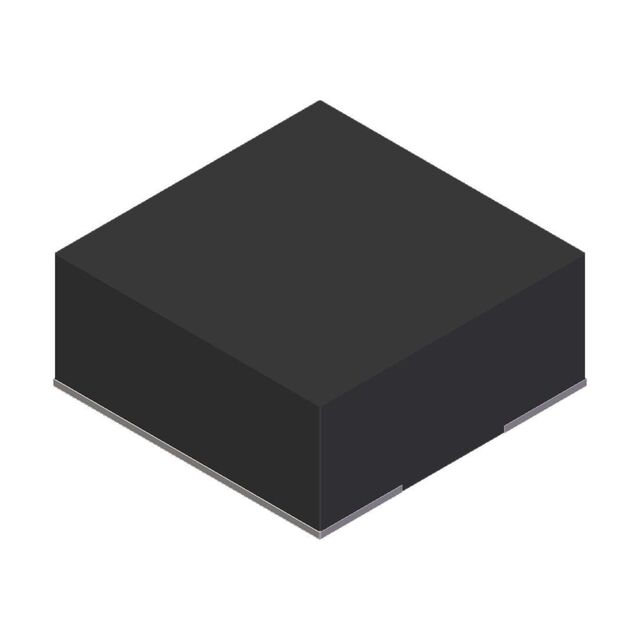

lmages are for reference only.TMIM0402S-1R2MG-D
IND 1.2UH 11.5MOHM 9.5A
DatasheetNonstandard
39,878 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 µH Unshielded Molded Inductor 9.5 A 11.5mOhm Max Nonstandard
TMIM0402S-1R2MG-D
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | TMIM0402S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TMIM0402S-1R0MG-D | TMIM0402S-1R5MG-D | TMIM0402S-2R2MG-D | TMIM0402S-R10MG-D |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IND 1UH 9MOHM 10A | IND 1.5UH 15MOHM 9A | IND 2.2UH 21MOHM 8A | IND 0.1UH 1.6MOHM 30.5A |
| Series | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
