Product CatalogPart Number
TMJPD561188HWA6SB7133
Manufacturer
Taoglas LimitedDescription
PURE RJ45, 1X1, SHIELDED EMI FIN
Datasheet
DatasheetPackage
-
In Stock
50,973 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TMJPD561188HWA6SB7133
TMJPD561188HWA6SB7133
lmages are for reference only.Payment Methods
Delivery Services
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
Quick Inquiry
TMJPD561188HWA6SB7133
Specifications
| Category | Connectors, Interconnects - Modular Connectors - Modular Connector Jacks |
| Manufacturer | Taoglas Limited |
| Series | Atmos Series |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Surface Mount |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Shielding | Shielded, EMI Finger |
| Ratings | Cat5e |
| Features | - |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Operating Temperature | -40°C ~ 85°C |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

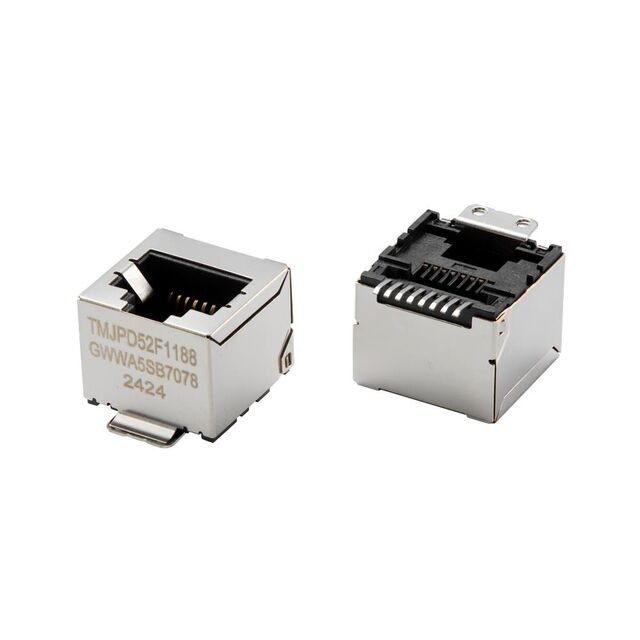

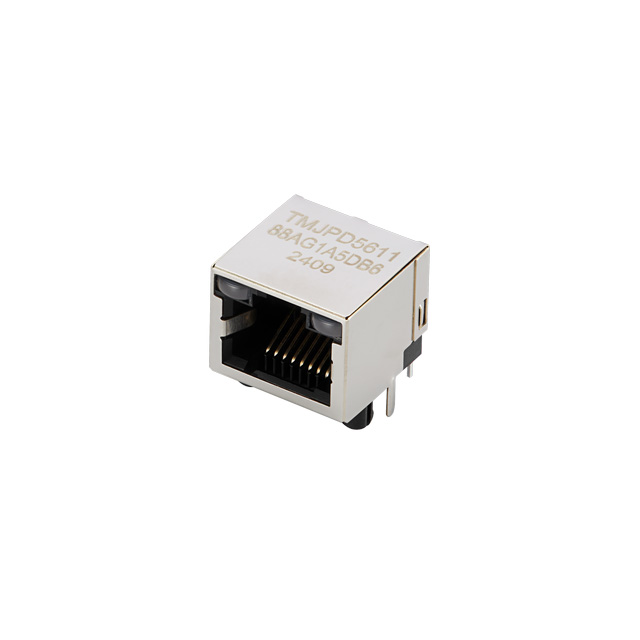

| Part Number | TMJPD52F1188GWWA5SB7078 | TMJPD561188AG1A5DB6 | GTVX-SMT-N-88-50TR | 0442480073 |
| Manufacturer | Taoglas Limited | Taoglas Limited | Kycon, Inc. | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PURE RJ45, 1X1, VERTICAL, SMT, S | PURE RJ45, 1X1, SHIELDED, W/LED, | MOD JACK SMT 8P8C TOP ENTRY W/O | CONN MOD JACK 6P6C R/A UNSHLD |
| Series | Atmos Series | Atmos Series | GTVX | 44248 |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
