Product CatalogPart Number
TMOV25SP550E
Manufacturer
Littelfuse Inc.Description
VARISTOR 910V 20KA SQUARE 25MM
Datasheet
DatasheetPackage
Square 25mm
In Stock
36,389 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TMOV25SP550E
TMOV25SP550E
lmages are for reference only.Payment Methods
Delivery Services
910 V 20 kA Varistor 1 Circuit Through Hole Square 25mm
Quick Inquiry
TMOV25SP550E
Specifications
| Category | Circuit Protection - Varistors-MOVs - |
| Manufacturer | Littelfuse Inc. |
| Series | TMOV® 25S |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Maximum AC Volts | 550 V |
| Maximum DC Volts | 745 V |
| Varistor Voltage (Min) | 819 V |
| Varistor Voltage (Typ) | 910 V |
| Varistor Voltage (Max) | 1.001 kV |
| Current - Surge | 20 kA |
| Energy | 550J |
| Number of Circuits | 1 |
| Capacitance @ Frequency | 630 pF @ 1 MHz |
| Operating Temperature | -55°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Square 25mm |
| Features | Thermally Protected |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

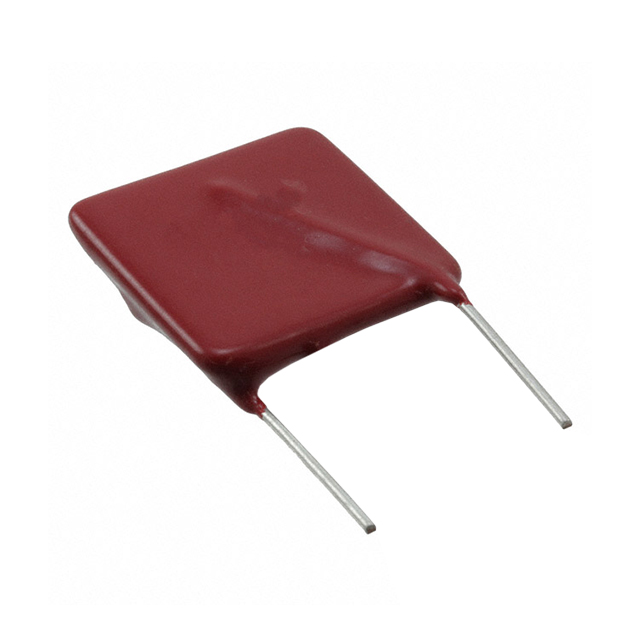

| Part Number | TMOV25SP510E | TMOV25SP510M | TMOV25SP550M | TMOV25SP115E |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VARISTOR 820V 20KA SQUARE 25MM | VARISTOR 820V 20KA SQUARE 25MM | VARISTOR 910V 20KA SQUARE 25MM | VARISTOR 180V 20KA SQUARE 25MM |
| Series | TMOV® 25S | TMOV® 25S | TMOV® 25S | TMOV® 25S |
| Packaging | Bulk | Bulk | Bulk | Bulk |
