TMPG06-20-1HE3_A/B

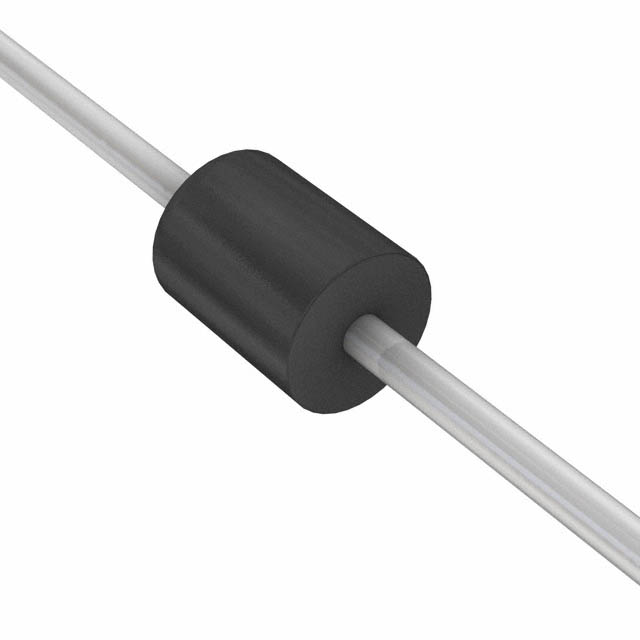

lmages are for reference only.TMPG06-20-1HE3_A/B
TVS DIODE AXIAL
DatasheetMPG06, Axial
86,031 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27.7V Clamp 14.4A Ipp Tvs Diode Through Hole MPG06
TMPG06-20-1HE3_A/B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | PAR® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 17V |
| Voltage - Breakdown (Min) | 19V |
| Voltage - Clamping (Max) @ Ipp | 27.7V |
| Current - Peak Pulse (10/1000µs) | 14.4A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 185°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | MPG06, Axial |
| Supplier Device Package | MPG06 |
| Base Product Number | TMPG06 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
 |
 |
| Part Number | TMPG06-20-81HE3/53 | TMPG06-20-E3/54 | TMPG06-20-E3/73 | TMPG06-20A-E3/54 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE MPG06 | TVS DIODE 16.2VWM 29.1VC MPG06 | TVS DIODE 16.2VWM 29.1VC MPG06 | TVS DIODE 17VWM 27.7VC MPG06 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Box (TB) | Tape & Reel (TR) |
