Product CatalogPart Number
TMR 3-4823WIR
Manufacturer
Traco PowerDescription
DC DC CONVERTER +/-15V 3W
Datasheet
DatasheetPackage
8-SIP Module
In Stock
39,993 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

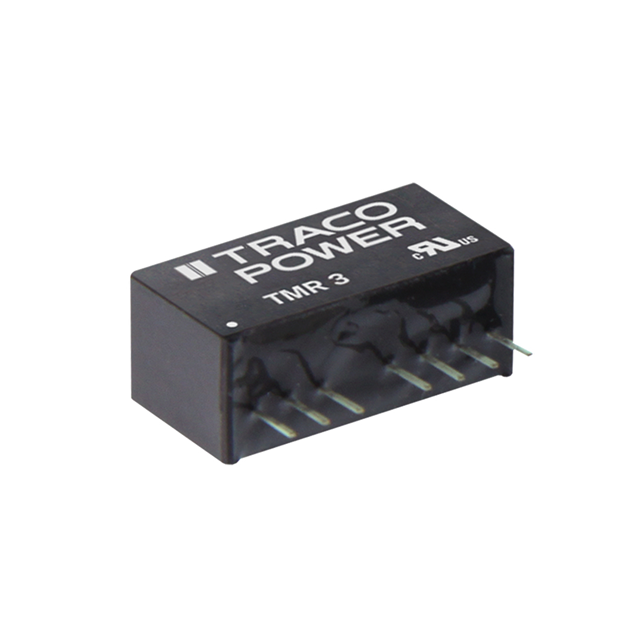

TMR 3-4823WIR
TMR 3-4823WIR
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 75V Input
Quick Inquiry
TMR 3-4823WIR
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Traco Power |
| Series | TMR 3WIR (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 90°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module |
| Size / Dimension | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | TMR 3 |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TMR 3-4823WI | TMR 3-4823WIE | TMR 3-4823WISM | TMR 3-4823 |
| Manufacturer | Traco Power | Traco Power | Traco Power | Traco Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-15V 3W | DC DC CONVERTER +/-15V 3W | DC DC CONVERTER +/-15V 3W | DC DC CONVERTER +/-15V 3W |
| Series | Traco Power | Traco Power | Traco Power | Traco Power |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
TMR 3-0510
Traco Power
TMR 3-0510E
Traco Power

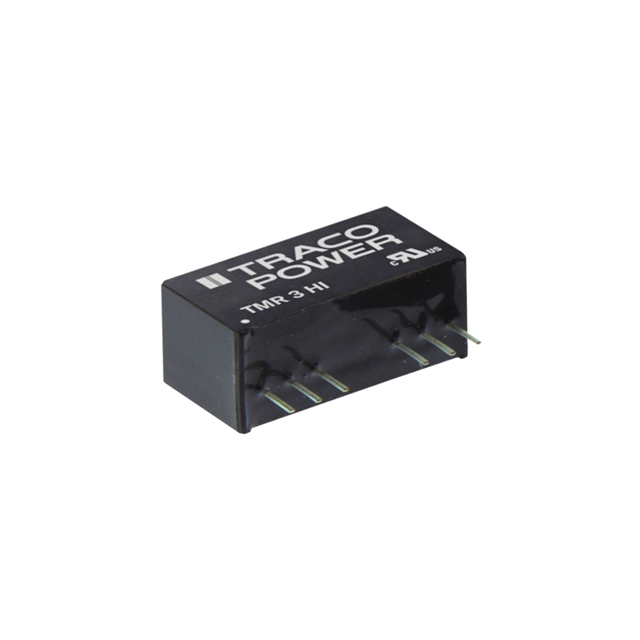

TMR 3-0510HI
