Product CatalogPart Number
TMYB97FNL
Manufacturer
Taoglas LimitedDescription
LAN TRANSFORMER, 10G BASE-T, 30
Datasheet
DatasheetPackage
-
In Stock
82,409 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TMYB97FNL
TMYB97FNL
lmages are for reference only.Payment Methods
Delivery Services
180µH LAN 10G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Surface Mount
Quick Inquiry
TMYB97FNL
Specifications
| Category | Transformers - Pulse Transformers - |
| Manufacturer | Taoglas Limited |
| Series | Exos10G |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Transformer Type | LAN 10G Base-T, Power over Ethernet (PoE) |
| Inductance | 180µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.698" L x 0.585" W (17.73mm x 14.86mm) |
| Height - Seated (Max) | 0.285" (7.24mm) |
| Operating Temperature | 0°C ~ 70°C |
| Weight | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

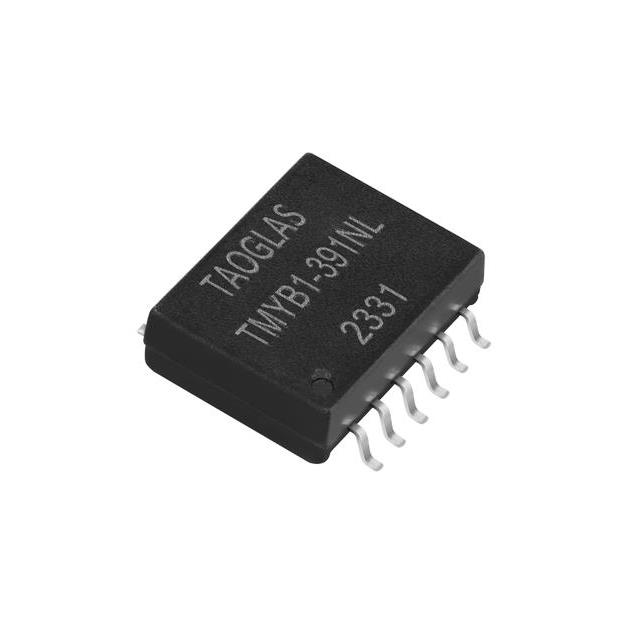

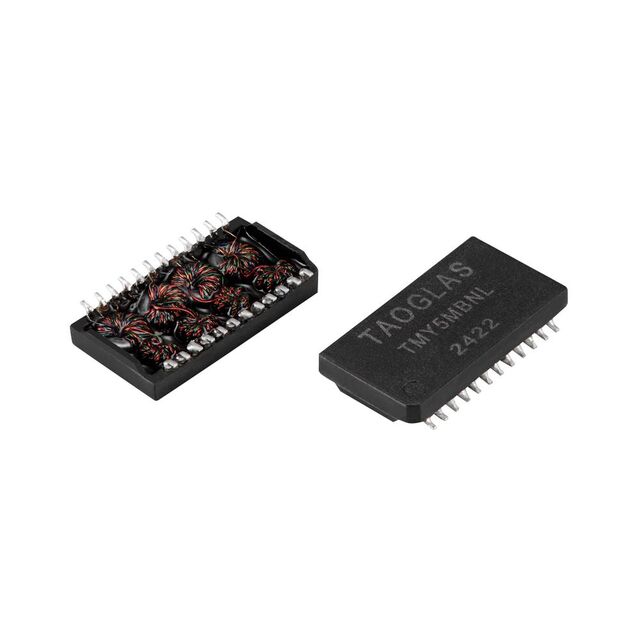

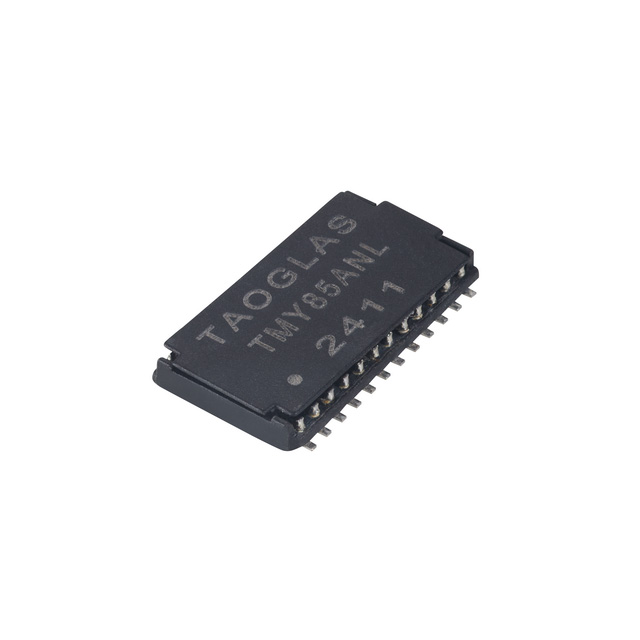

| Part Number | TMY5MBNL | TMY85ANL | TMY86NL | TMYB1-391NL |
| Manufacturer | Taoglas Limited | Taoglas Limited | Taoglas Limited | Taoglas Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LAN TRANSFORMER, 1G BASE-T, PCMC | LAN TRANSFORMER, 1G BASE-T, 24 P | LAN TRANSFORMER, 1G BASE-T, 24 P | BMS TRANSFORMERS WITH CMC, 12 PI |
| Series | Exos1G | Exos1G | Exos1G | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
