TN4050HA-12GY
lmages are for reference only.TN4050HA-12GY
LINEAR IC'S
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
95,308 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR 1.2 kV 40 A Standard Recovery Surface Mount D2PAK
TN4050HA-12GY
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Voltage - Off State | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - On State (It (AV)) (Max) | 25 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 438A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Voltage - On State (Vtm) (Max) | 1.55 V |
| Current - On State (It (RMS)) (Max) | 40 A |
| Current - Off State (Max) | 3 µA |
| Base Product Number | TN4050 |
| Product Attribute |  |
 |
 |
 |

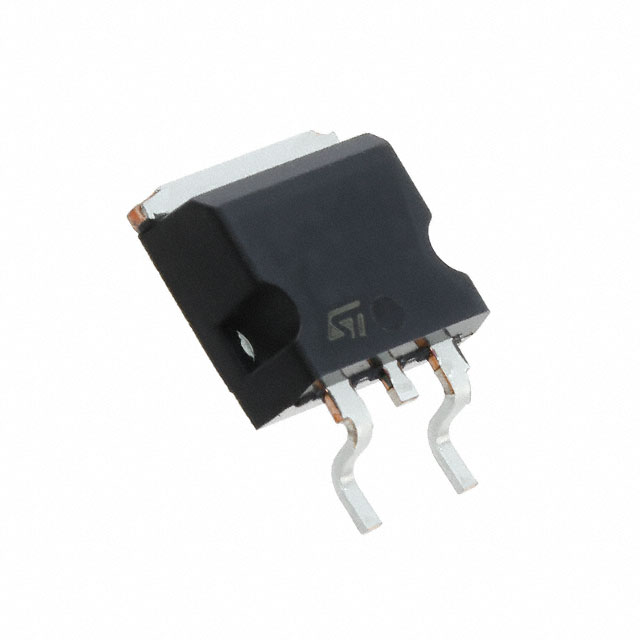

| Part Number | TN4050HA-12GY-TR | TN4050HP-12G2YTR | TN4050HP-12GY-TR | TN4015H-6G-TR |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1200 V , 40 A AUTOMOTIVE SCR THY | 1200 V, 40 A AUTOMOTIVE GRADE AE | 1200 V, 40 A AUTOMOTIVE GRADE SC | SCR 600V 40A D2PAK |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
