Product CatalogPart Number
TNP10SA1R50FE
Manufacturer
OhmiteDescription
RES 1.5 OHM 1% 10W TO126
Datasheet
DatasheetPackage
TO-126-2
In Stock
14,799 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TNP10SA1R50FE
TNP10SA1R50FE

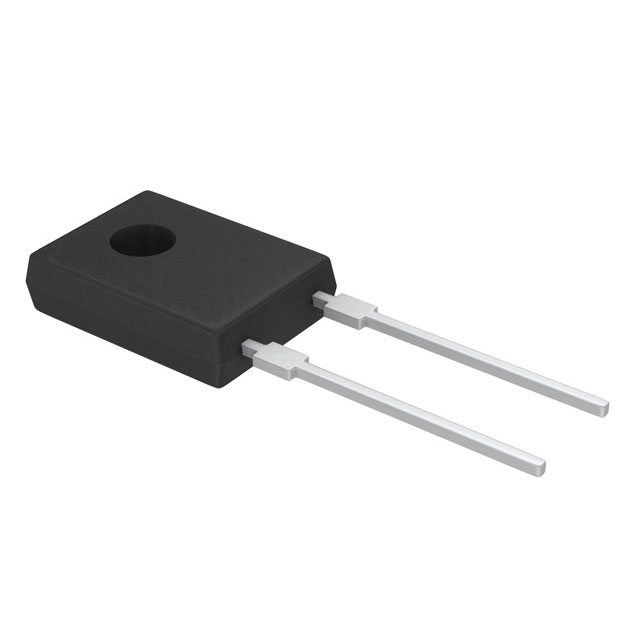

lmages are for reference only.Payment Methods
Delivery Services
1.5 Ohms ±1% 10W Through Hole Resistor TO-126-2 Moisture Resistant, Non-Inductive Thin Film
Quick Inquiry
TNP10SA1R50FE
Specifications
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Ohmite |
| Series | TNP10 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1.5 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 10W |
| Composition | Thin Film |
| Features | Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-126-2 |
| Supplier Device Package | TO-126 |
| Size / Dimension | 0.335" L x 0.122" W (8.50mm x 3.10mm) |
| Height - Seated (Max) | 0.598" (15.19mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | TNP10SA1R00FE | TNP10SA1R00FE | TNP10SA2R00FE | TNP10SA3R00FE |
| Manufacturer | Ohmite | Ohmite | Ohmite | Ohmite |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 1 OHM 1% 10W TO126 | RES 1 OHM 1% 10W TO126-2 | RES 2 OHM 1% 10W TO126 | RES 3 OHM 1% 10W TO126 |
| Series | Ohmite | Ohmite | Ohmite | Ohmite |
| Packaging | Tube | Bulk | Tube | Tube |
