TOP258GN-TL

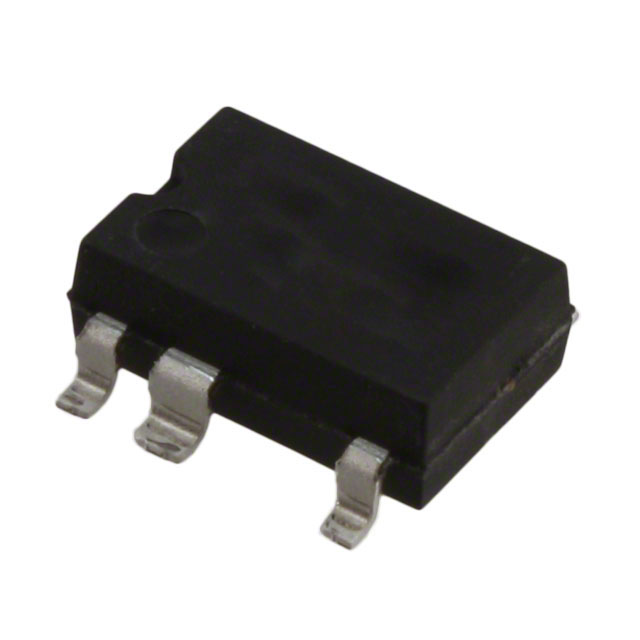

lmages are for reference only.TOP258GN-TL
IC OFFLINE SWITCH FLYBACK 8SMD
Datasheet8-SMD (7 Leads), Gull Wing
16,135 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology 66kHz SMD-8C
TOP258GN-TL
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Power Integrations |
| Series | TOPSwitch®-HX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 48 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8C |
| Mounting Type | Surface Mount |
| Base Product Number | TOP258 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TOP258GN | TOP250F | TOP250FN | TOP250R-TL |
| Manufacturer | Power Integrations | Power Integrations | Power Integrations | Power Integrations |
| RoHS Status | RoHS Compliant | RoHS non-compliant | RoHS Compliant | RoHS non-compliant |
| Description | IC OFFLINE SWITCH FLYBACK 8SMD | IC OFFLINE SW FLYBACK TO262-7C | IC OFFLINE SW FLYBACK TO262-7C | IC OFFLINE SWITCH FLYBACK TO263 |
| Series | TOPSwitch®-HX | TOPSwitch®-GX | TOPSwitch®-GX | TOPSwitch®-GX |
| Packaging | Tube | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
