TP1.5KE30CA
lmages are for reference only.TP1.5KE30CA
TVS DIODE 25.6VWM 41.4VC DO201
DatasheetDO-201AA, DO-27, Axial
22,119 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
41.4V Clamp 36.7A Ipp Tvs Diode Through Hole DO-201
TP1.5KE30CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | TP1.5KE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 25.6V |
| Voltage - Breakdown (Min) | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 41.4V |
| Current - Peak Pulse (10/1000µs) | 36.7A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|

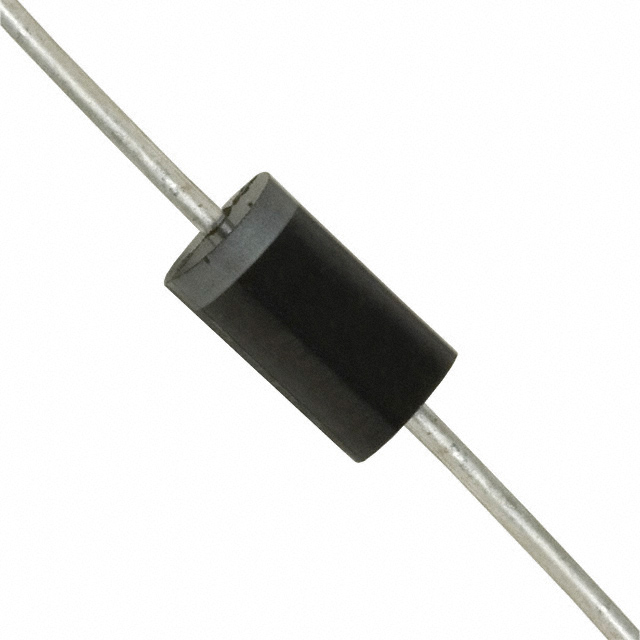

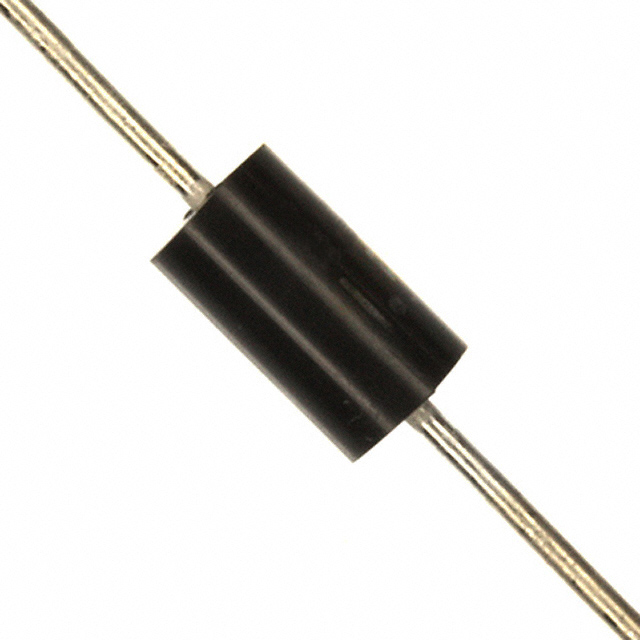

| Part Number | TP1.5KE30A | TP1.5KE33A | TP1.5KE33CA | TP1.5KE36A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 25.6VWM 41.4VC DO201 | TVS DIODE 28.2VWM 45.7VC DO201 | TVS DIODE 28.2VWM 45.7VC DO201 | TVS DIODE 30.8VWM 49.9VC DO201 |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
