Product CatalogPart Number
TP5KP18CA
Manufacturer
Littelfuse Inc.Description
TVS DIODE 18VWM 29.2VC P600
Datasheet
DatasheetPackage
P600, Axial
In Stock
12,679 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TP5KP18CA
TP5KP18CA
lmages are for reference only.Payment Methods
Delivery Services
29.2V Clamp 174.7A Ipp Tvs Diode Through Hole P600
Quick Inquiry
TP5KP18CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | TP5KP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 18V |
| Voltage - Breakdown (Min) | 20V |
| Voltage - Clamping (Max) @ Ipp | 29.2V |
| Current - Peak Pulse (10/1000µs) | 174.7A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TP5KP11A | TP5KP11CA | TP5KP12A | TP5KP12CA |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 11VWM 18.2VC P600 | TVS DIODE 11VWM 18.2VC P600 | TVS DIODE 12VWM 19.9VC P600 | TVS DIODE 12VWM 19.9VC P600 |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
TP5KP11A
Littelfuse Inc.
TP5KP11CA
Littelfuse Inc.
TP5KP12A
Littelfuse Inc.
TP5KP12CA
Littelfuse Inc.
TP5KP13A
Littelfuse Inc.
TP5KP13CA
Littelfuse Inc.
TP5KP14A
Littelfuse Inc.
TP5KP14CA
Littelfuse Inc.
TP5KP15A
Littelfuse Inc.
TP5KP15CA
Littelfuse Inc.
TP5KP16A
Littelfuse Inc.
TP5KP16CA
Littelfuse Inc.
TP5KP17A
Littelfuse Inc.
TP5KP17CA
Littelfuse Inc.
TP5KP18A
Littelfuse Inc.
TP5KP20A
Littelfuse Inc.
TP5KP20CA
Littelfuse Inc.

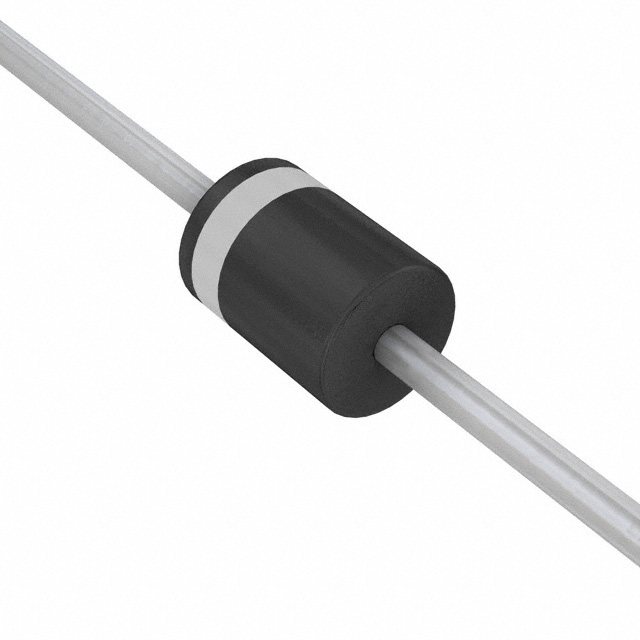

TP5KP22A
