Product CatalogPart Number
TPC5120S16-QFBR
Manufacturer
3PEAKDescription
12 BIT ANALOG TO DIGITAL CONVERT
Datasheet
DatasheetPackage
32-VFQFN Exposed Pad
In Stock
46,857 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TPC5120S16-QFBR
TPC5120S16-QFBR
lmages are for reference only.Payment Methods
Delivery Services
12 Bit Analog to Digital Converter 16 Input 1 SAR 32-QFN (5x5)
Quick Inquiry
TPC5120S16-QFBR
Specifications
| Category | Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters ADC |
| Manufacturer | 3PEAK |
| Series | TPC512x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 16 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

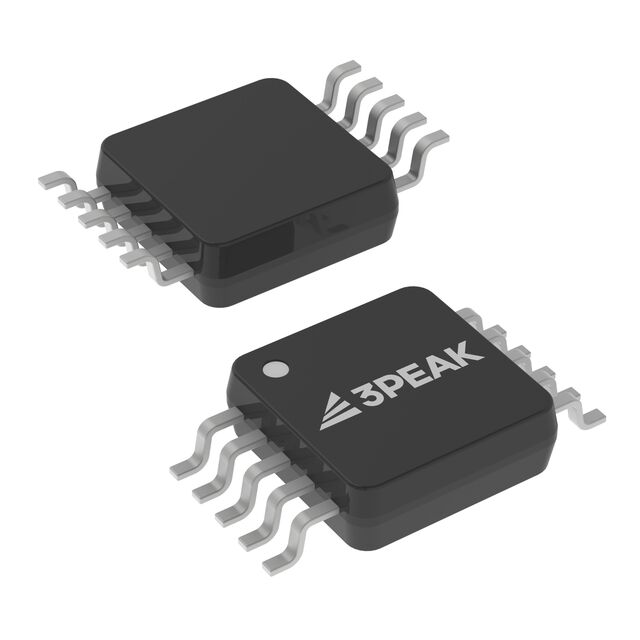

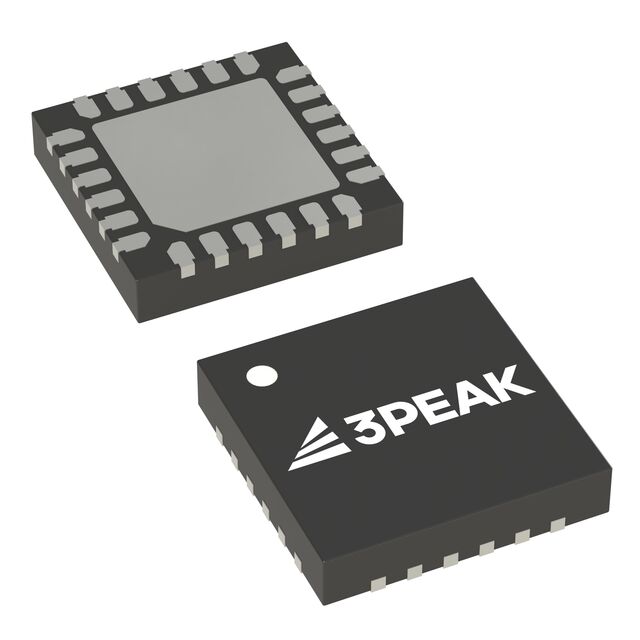

| Part Number | TPC5120S16-TS7R-S | TPC5120Q-TS7R-S | TPC5121S08-QF8R | TPC5160-VS2R |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 12 BIT ANALOG TO DIGITAL CONVERT | IC ADC 12BIT 16 CH SAR 38-TSSOP | 12 BIT ANALOG TO DIGITAL CONVERT | 16 BIT 600KSPS ANALOG TO DIGITAL |
| Series | TPC512x | - | TPC512x | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
