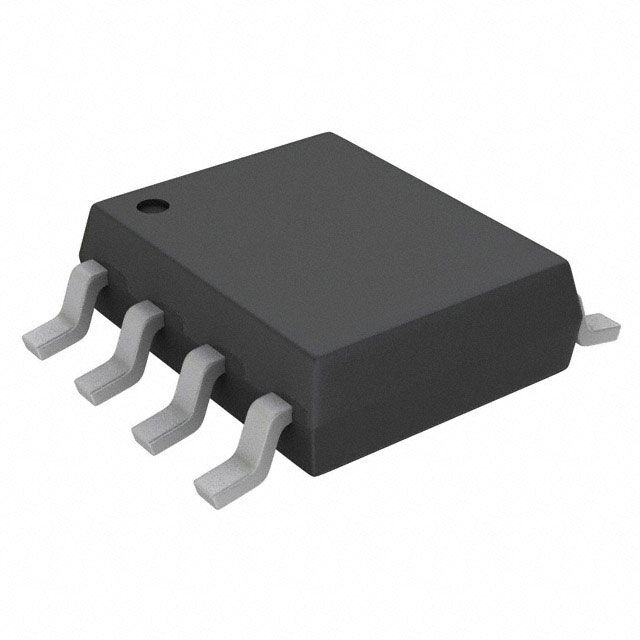

.jpg "TPC8211(TE12L,Q,M)")
TPC8211(TE12L,Q,M)
lmages are for reference only.TPC8211(TE12L,Q,M)
MOSFET 2N-CH 30V 5.5A 8SOP
Datasheet8-SOIC (0.173", 4.40mm Width)
19,422 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 5.5A 450mW Surface Mount 8-SOP (5.5x6.0)
TPC8211(TE12L,Q,M)
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250pF @ 10V |
| Power - Max | 450mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 8-SOP (5.5x6.0) |
| Base Product Number | TPC8211 |
| Grade | - |
| Qualification | - |
| Product Attribute | .jpg "TPC8207(TE12L)") |
.jpg "TPC8207(TE12L,Q)") |
.jpg "TPC8208(TE12L,Q,M)") |
 |
| Part Number | TPC8207(TE12L) | TPC8207(TE12L,Q) | TPC8208(TE12L,Q,M) | TPC8212-H(TE12LQ,M |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS non-compliant | |||
| Description | MOSFET 2N-CH 20V 6A 8SOP | MOSFET 2N-CH 20V 6A 8SOP | MOSFET 2N-CH 20V 5A 8SOP | MOSFET 2N-CH 30V 6A 8SOP |
| Series | - | - | - | - |
| Packaging | Digi-Reel® | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
