TPH6400ENH,L1Q
lmages are for reference only.TPH6400ENH,L1Q
MOSFET N-CH 200V 13A 8SOP
Datasheet8-PowerVDFN
54,085 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 200 V 13A (Ta) 1.6W (Ta), 57W (Tc) Surface Mount 8-SOP Advance (5x5)
TPH6400ENH,L1Q
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSVIII-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 64mOhm @ 6.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 300µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta), 57W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | TPH6400 |
| Gate Charge (Qg) (Max) @ Vgs | 11.2 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

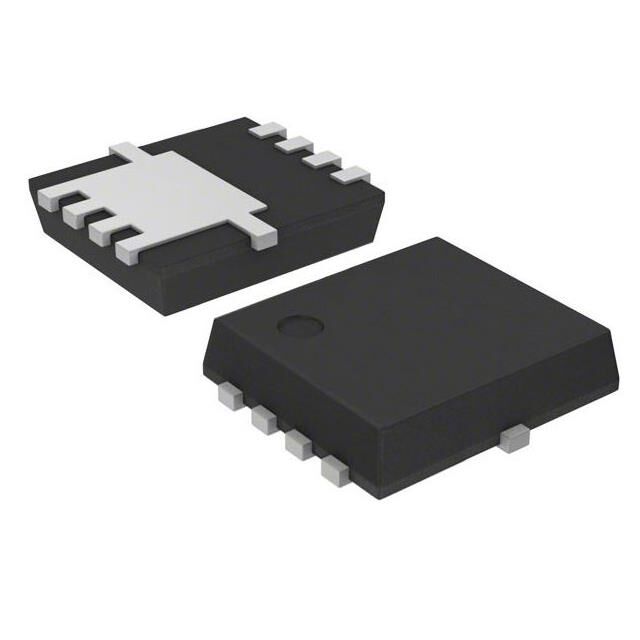

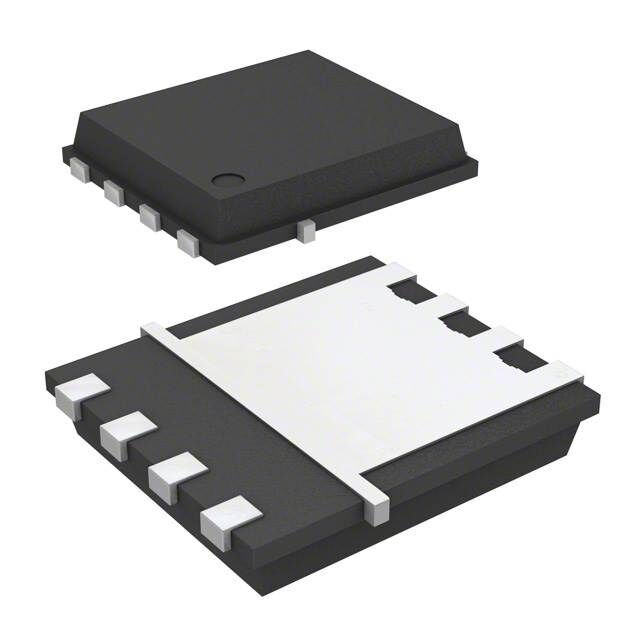

| Part Number | TPH6R003NL,LQ | TPH6R004PL,LQ | TPH6R008QM,LQ | TPH6R30ANL,L1Q |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | MOSFET N CH 30V 38A 8SOP | MOSFET N-CH 40V 87A/49A 8SOP | 80V UMOS9-H SOP-ADVANCE(N) 6MOHM | MOSFET N-CH 100V 66A/45A 8SOP |
| Series | U-MOSVIII-H | U-MOSIX-H | U-MOSX-H | U-MOSVIII-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
