TPK-R-3.5A
lmages are for reference only.Payment Methods
Delivery Services

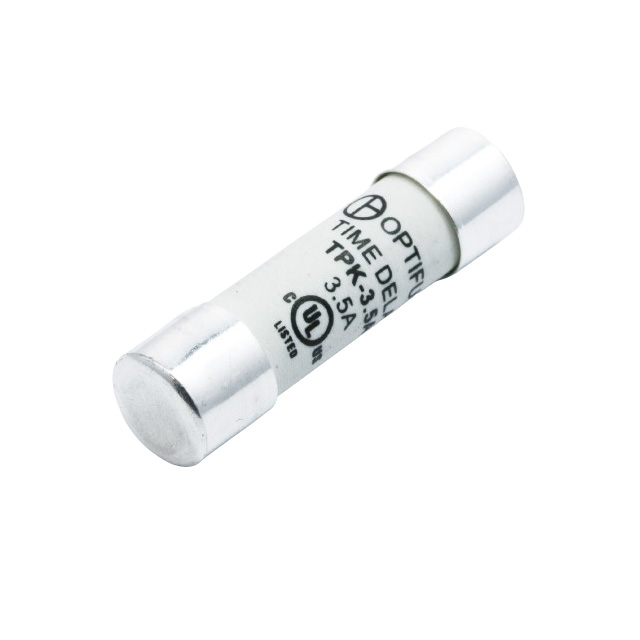

3.5A 600 VAC 300 VDC Fuse Cartridge Requires Holder
TPK-R-3.5A
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | OptiFuse |
| Series | TPK-R |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 3.5A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | CC |
| Approval Agency | cULus, UL 248 |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 10kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 300 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPK-R-3.15A | TPK-R-30A | TPK-R-3A | TPK-1.25A |
| Manufacturer | OptiFuse | OptiFuse | OptiFuse | OptiFuse |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | UL Class CC Fuse, Time Delay 3.1 | UL CLASS M FUSE, TIME DELAY 30A | UL CLASS M FUSE, TIME DELAY 3A | UL Class M Fuse, Time Delay 1.25 |
| Series | TPK-R | TPK-R | TPK-R | TPK |
| Packaging | Bulk | Bulk | Bulk | Bulk |
