TPS2060DRBR

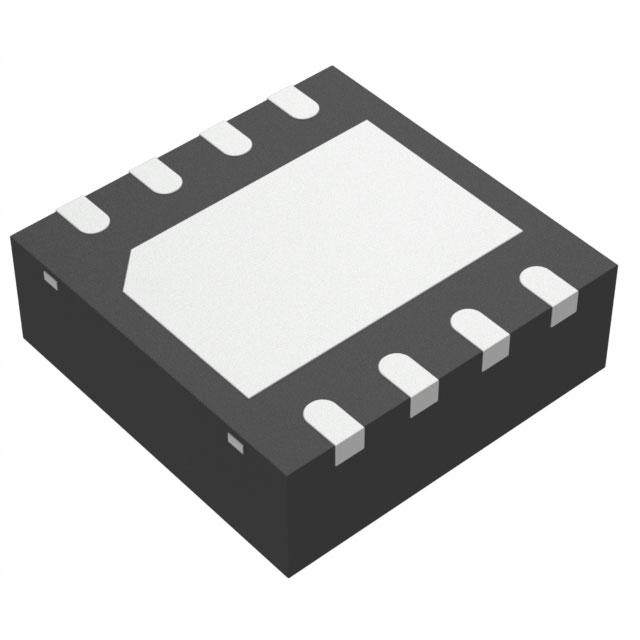

lmages are for reference only.TPS2060DRBR
IC PWR SWITCH N-CHAN 1:2 8SON
Datasheet8-VDFN Exposed Pad
56,539 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:2 N-Channel 1.5A 8-SON (3x3)
TPS2060DRBR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Rds On (Typ) | 70mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | 0°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SON (3x3) |
| Package / Case | 8-VDFN Exposed Pad |
| Base Product Number | TPS2060 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPS2060DGN | TPS2060DGNR | TPS2060DRBT | TPS2000CDGK |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH N-CHAN 1:2 8MSOP | IC PWR SWITCH N-CHAN 1:2 8MSOP | IC PWR SWITCH N-CHAN 1:2 8SON | IC PWR SWITCH N-CHAN 1:1 8VSSOP |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
