TPS65280RGER
lmages are for reference only.TPS65280RGER
IC PWR SWITCH N-CHAN 1:2 24VQFN
Datasheet24-VFQFN Exposed Pad
51,304 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:2 N-Channel 4A 24-VQFN (4x4)
TPS65280RGER
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | USB Switch |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 4A |
| Rds On (Typ) | 80mOhm |
| Input Type | - |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-VQFN (4x4) |
| Package / Case | 24-VFQFN Exposed Pad |
| Base Product Number | TPS65280 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

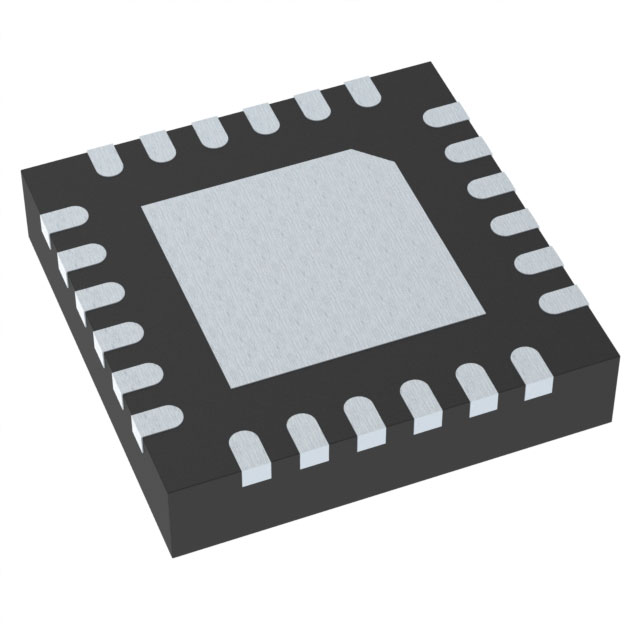

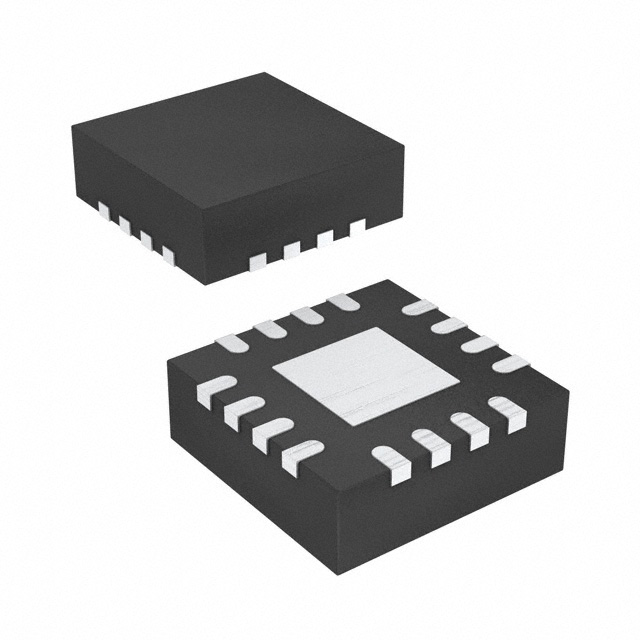

| Part Number | TPS65281-1RGVR | TPS65281RGVR | TPS65281RGVT | TPS65282RGER |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH N-CHAN 1:1 16VQFN | IC PWR SWITCH N-CHAN 1:1 16VQFN | IC PWR SWITCH N-CHAN 1:1 16VQFN | IC PWR SWITCH N-CHAN 1:1 24VQFN |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
