Product CatalogPart Number
TPS72750YFFT
Manufacturer
Texas InstrumentsDescription
IC REG LINEAR 5V 250MA 4DSBGA
Datasheet
DatasheetPackage
4-UFBGA, DSBGA
In Stock
57,892 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TPS72750YFFT
TPS72750YFFT
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA 4-DSBGA (1x1)
Quick Inquiry
TPS72750YFFT
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 200mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 110 µA |
| PSRR | 85dB ~ 45dB (10Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (1x1) |
| Base Product Number | TPS72750 |
| Current - Supply (Max) | 130 µA |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

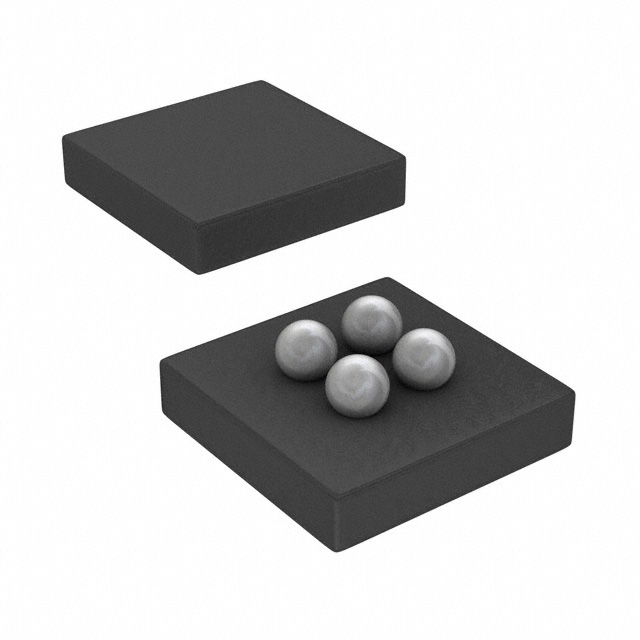

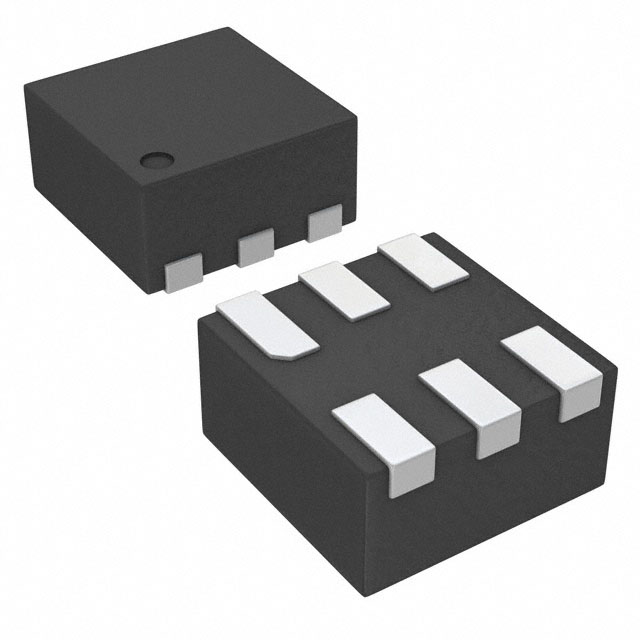

| Part Number | TPS72750YFFR | TPS727105YFFR | TPS727105YFFT | TPS72710DSER |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 5V 250MA 4DSBGA | IC REG LINEAR 1.05V 250MA 4DSBGA | IC REG LINEAR 1.05V 250MA 4DSBGA | IC REG LINEAR 1V 250MA 6WSON |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
