TPS728185315YZUT
lmages are for reference only.TPS728185315YZUT
IC REG LIN 1.85/3.15V 5DSBGA
Datasheet5-UFBGA, DSBGA
45,182 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 5-DSBGA
TPS728185315YZUT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.85V, 3.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 65dB ~ 40dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-UFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA |
| Base Product Number | TPS728185315 |
| Current - Supply (Max) | 120 µA |
| Product Attribute |  |
 |
 |
 |

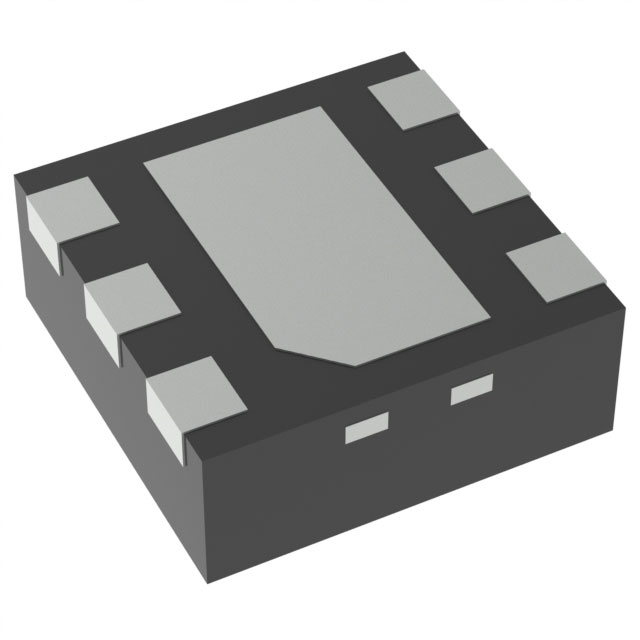

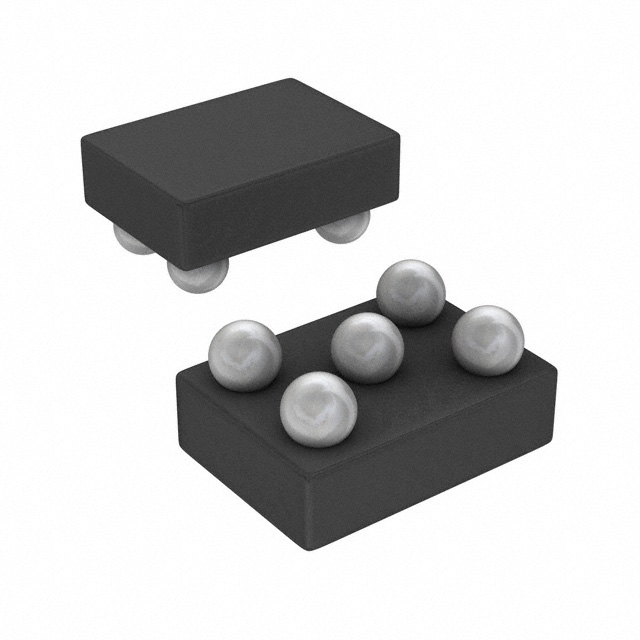

| Part Number | TPS728185315YZUR | TPS728185315DRVR | TPS728185315DRVRG4 | TPS728185315DRVT |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LIN 1.85/3.15V 5DSBGA | IC REG LIN 1.85/3.15V 200MA 6SON | IC REG LIN 1.85/3.15V 200MA 6SON | IC REG LIN 1.85/3.15V 200MA 6SON |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
