Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-263-5L
TPS7A4501R
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | TAEJIN |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 1.5 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5L |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

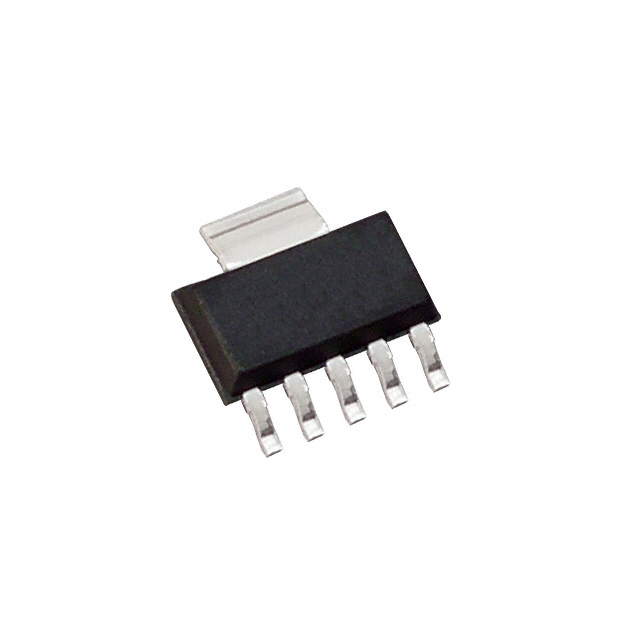

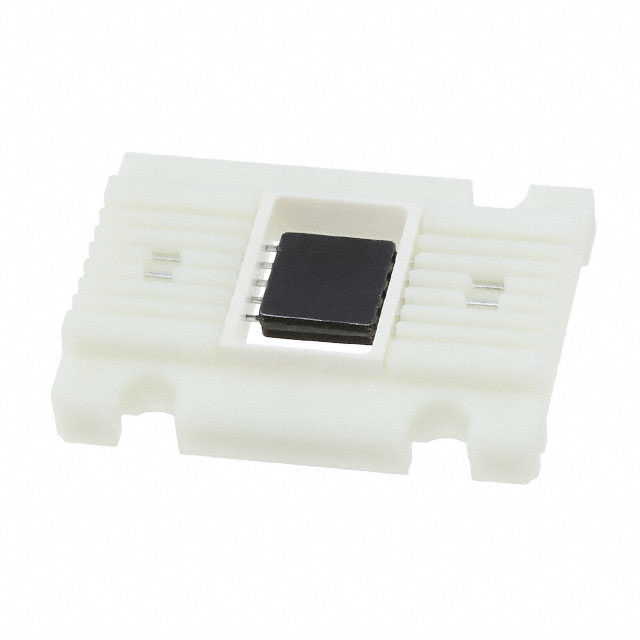

| Part Number | TPS7A4501DCQR | TPS7A4501DCQT | TPS7A4501KTTR | TPS7A4501U/EM |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC REG LIN POS ADJ 1.5A SOT223-6 | IC REG LIN POS ADJ 1.5A SOT223-6 | IC REG LINEAR POS ADJ 1.5A DDPAK | IC REG LIN POS ADJ 750MA 10CFP |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
