TPSMA6L11A

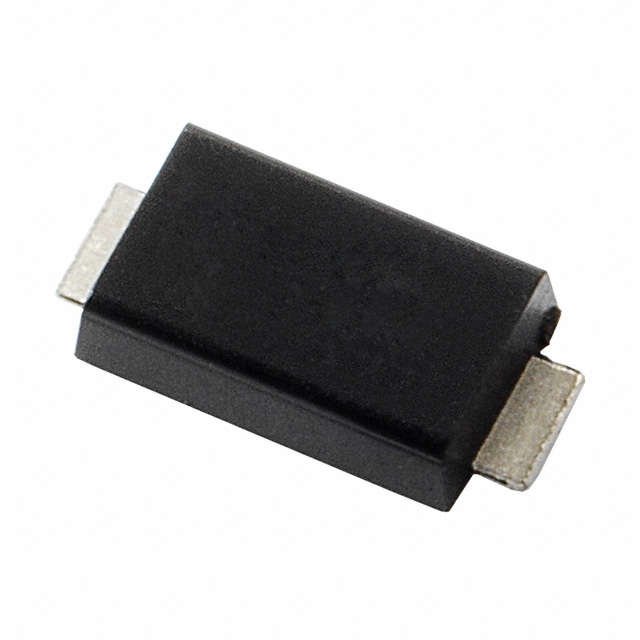

lmages are for reference only.TPSMA6L11A
TVS DIODE 11VWM 18.2VC SMAF
DatasheetDO-221AC, SMA Flat Leads
60,972 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
18.2V Clamp 33A Ipp Tvs Diode Surface Mount SMAF
TPSMA6L11A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 11V |
| Voltage - Breakdown (Min) | 12.2V |
| Voltage - Clamping (Max) @ Ipp | 18.2V |
| Current - Peak Pulse (10/1000µs) | 33A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAF |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | TPSMA6L11A | TPSMA6L10A | TPSMA6L12A | TPSMA6L12A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS SMAF 11V 600W UNIDIR | TVS DIODE 10VWM 17VC DO221AC | TVS SMAF 12V 600W UNIDIR | TVS DIODE 12VWM 19.9VC SMAF |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Diotec Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
