Product CatalogPart Number
TPSMB250A
Manufacturer
Littelfuse Inc.Description
TVS DIODE 214VWM 344VC DO214AA
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
96,543 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TPSMB250A
TPSMB250A
lmages are for reference only.Payment Methods
Delivery Services
344V Clamp 1.8A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
Quick Inquiry
TPSMB250A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | TPSMB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 214V |
| Voltage - Breakdown (Min) | 237V |
| Voltage - Clamping (Max) @ Ipp | 344V |
| Current - Peak Pulse (10/1000µs) | 1.8A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

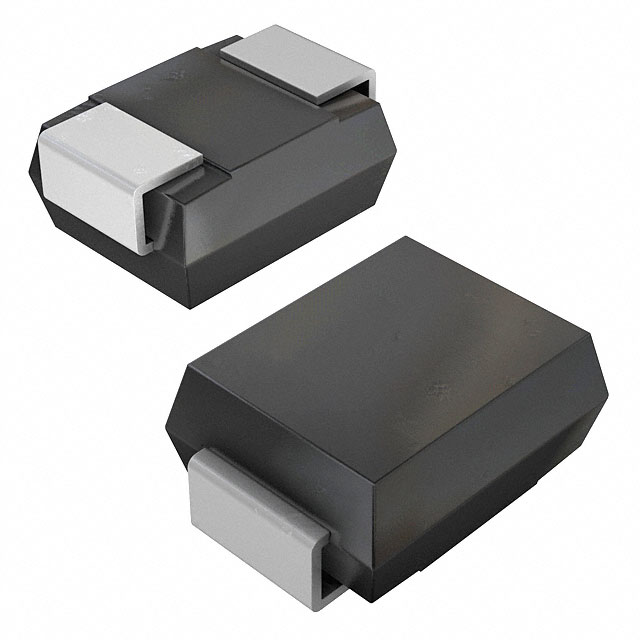

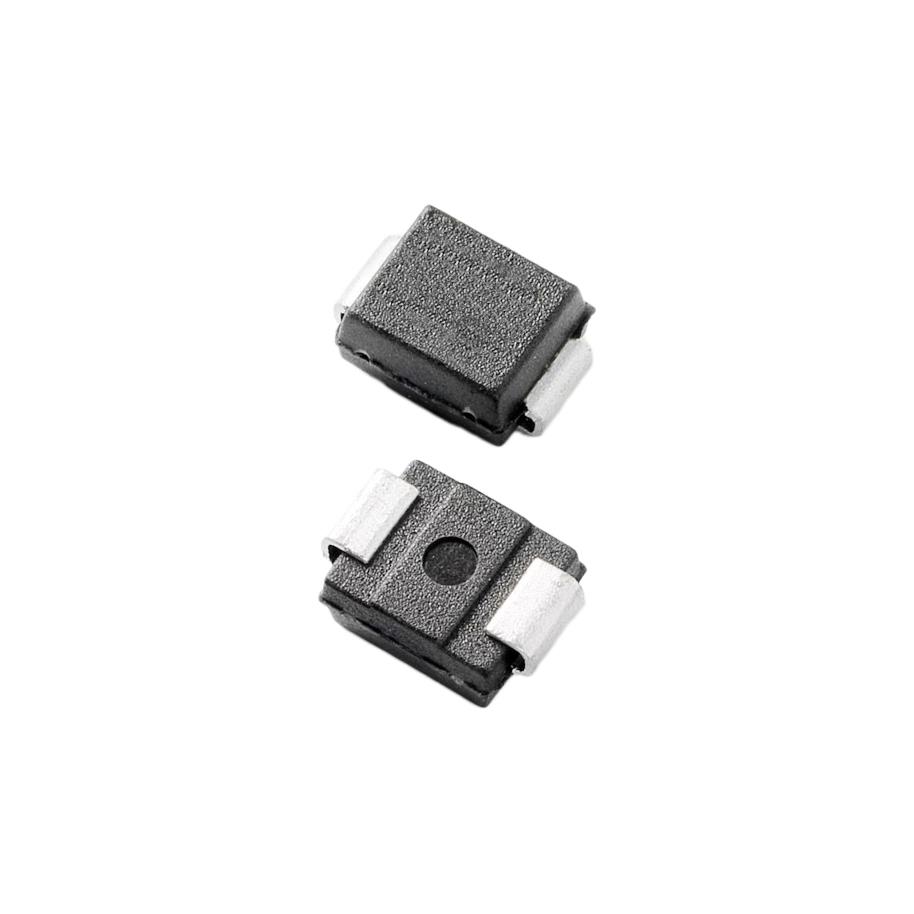

| Part Number | TPSMB250A-VR | TPSMB250CA | TPSMB250CA-VR | TPSMB2005CA |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 250VWM 405VC DO214 TR | TVS DIODE 214VWM 344VC DO214AA | TVS DIODE 250VWM 405VC DO214 TR | TVS 600W ASYM DO214AA AEQ101 T&R |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
