TPSMP33AHM3_A/H

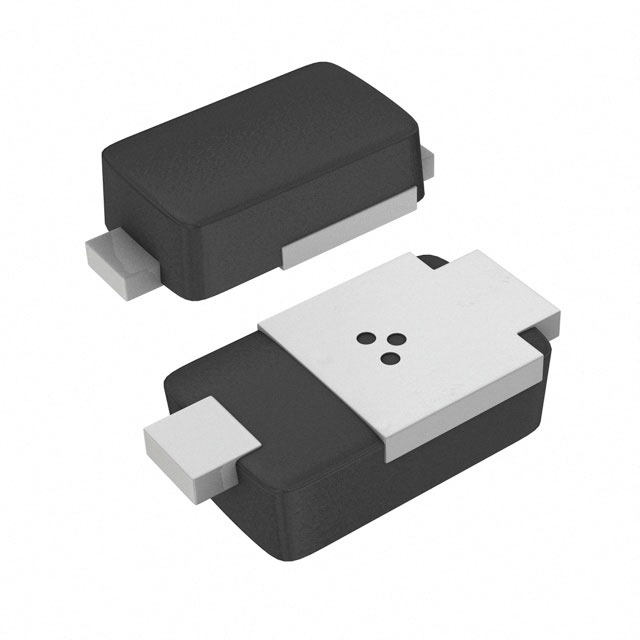

lmages are for reference only.TPSMP33AHM3_A/H
TVS DIODE 28.2VWM 45.7VC DO220AA
DatasheetDO-220AA
87,361 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
45.7V Clamp 8.8A Ipp Tvs Diode Surface Mount DO-220AA (SMP)
TPSMP33AHM3_A/H
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | PAR®, eSMP® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 28.2V |
| Voltage - Breakdown (Min) | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 45.7V |
| Current - Peak Pulse (10/1000µs) | 8.8A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 185°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-220AA |
| Supplier Device Package | DO-220AA (SMP) |
| Base Product Number | TPSMP33 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | TPSMP33AHM3/84A | TPSMP33AHM3/85A | TPSMP33AHM3_A/I | TPSMP10AHE3/84A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 28.2VWM 45.7VC DO220AA | TVS DIODE 28.2VWM 45.7VC DO220AA | TVS DIODE 28.2VWM 45.7VC DO220AA | TVS DIODE 8.55VWM 14.5VC DO220AA |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
