TPT3232X-TS3R

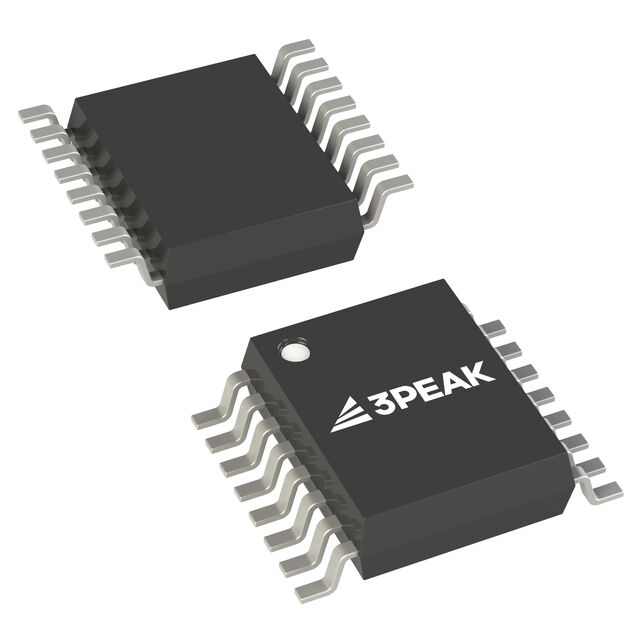

lmages are for reference only.Payment Methods
Delivery Services
2/2 Transceiver Full RS232 16-TSSOP
TPT3232X-TS3R
| Category | Integrated Circuits (ICs) - Interface - Drivers-Receivers-Transceivers |
| Manufacturer | 3PEAK |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TPT3232A-SO3R | TPT3232A-SS3R | TPT3232A-TS3R | TPT3232E-SO3R |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC TRANSCEIVER 1/1 16-SOP | IC TRANSCEIVER 1/1 16-SSOP | IC TRANSCEIVER 2/2 16-TSSOP | 2/2 TRANSCEIVER FULL RS232 16-SO |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
