General Purpose Digital Isolator 3750Vrms 4 Channel 150Mbps 150kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)
TPT7742F-SO3R
| Category | Isolators - Digital Isolators - |
| Manufacturer | 3PEAK |
| Series | TPT774x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Data Rate | 150Mbps |
| Propagation Delay tpLH / tpHL (Max) | 22ns, 22ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 0.7ns, 0.7ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

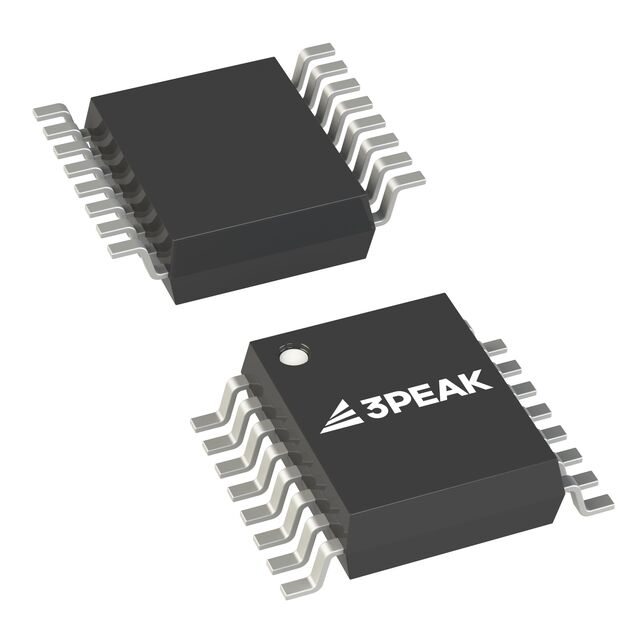

| Part Number | TPT7742-SOBR | TPT7742-SSAR | TPT7742F-SSAR | TPT72616-SO1R |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

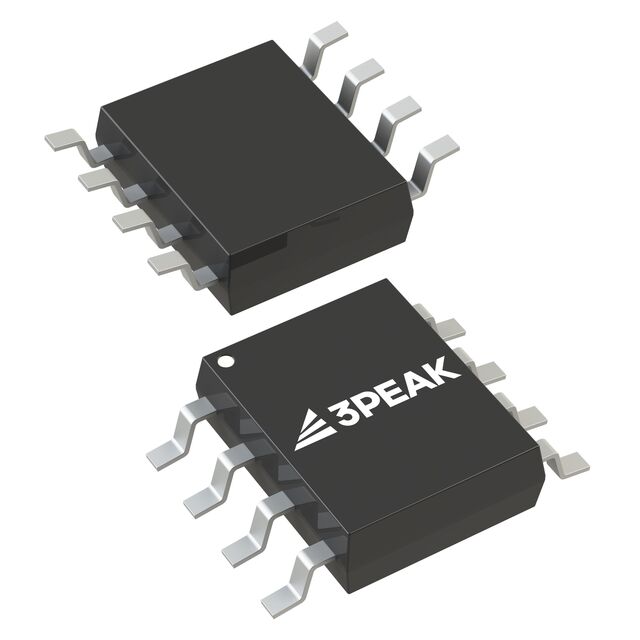

| Description | GENERAL PURPOSE DIGITAL ISOLATOR | GENERAL PURPOSE DIGITAL ISOLATOR | GENERAL PURPOSE DIGITAL ISOLATOR | BIDIRECTIONAL I2C ISOLATOR 8-SOP |
| Series | TPT774x | TPT774x | TPT774x | TPT7261x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
