TQM025NB04CR RLG

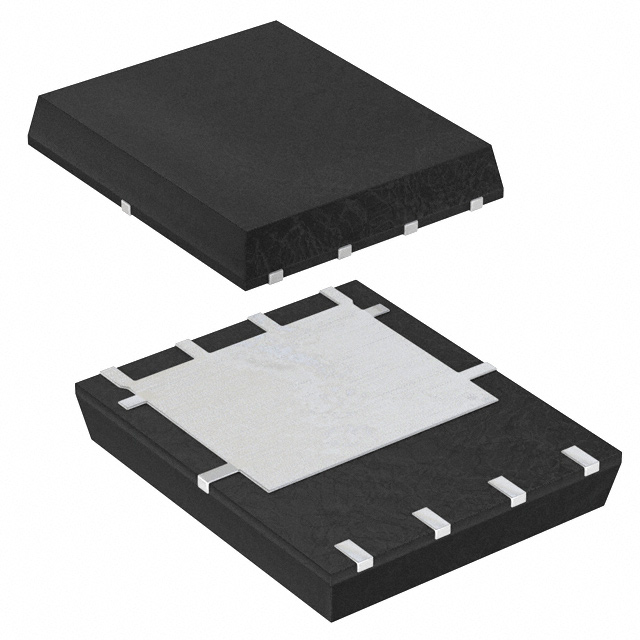

lmages are for reference only.TQM025NB04CR RLG
MOSFET N-CH 40V 24A/157A 8PDFNU
Datasheet8-PowerTDFN
31,767 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 24A (Ta), 157A (Tc) 3.1W (Ta), 136W (Tc) Surface Mount, Wettable Flank 8-PDFNU (5x6)
TQM025NB04CR RLG
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Ta), 157A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6670 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 136W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-PDFNU (5x6) |
| Package / Case | 8-PowerTDFN |
| Base Product Number | TQM025 |
| Gate Charge (Qg) (Max) @ Vgs | 118 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
|
 |
 |
| Part Number | TQM025NH04CR RLG | TQM025NH04CR-V RLG | TQM025NH04LCR RLG | TQM025NH04LCR-V RLG |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | |||
| Description | 40V, 100A, SINGLE N-CHANNEL POWE | 40V, 100A, SINGLE N-CHANNEL POWE | 40V, 100A, SINGLE N-CHANNEL POWE | 40V, 100A, SINGLE N-CHANNEL POWE |
| Series | PerFET™ | PerFET™ | PerFET™ | PerFET™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
