TR150R
lmages are for reference only.TR150R
250V 150A 7 1/8X1 9/10 TD
DatasheetCylindrical, Blade Terminal (Bolt)
93,685 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150A 250 VAC 250 VDC Fuse Cartridge Bolt Mount
TR150R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TR-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 150A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.575" Dia x 7.126" L (40.00mm x 181.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

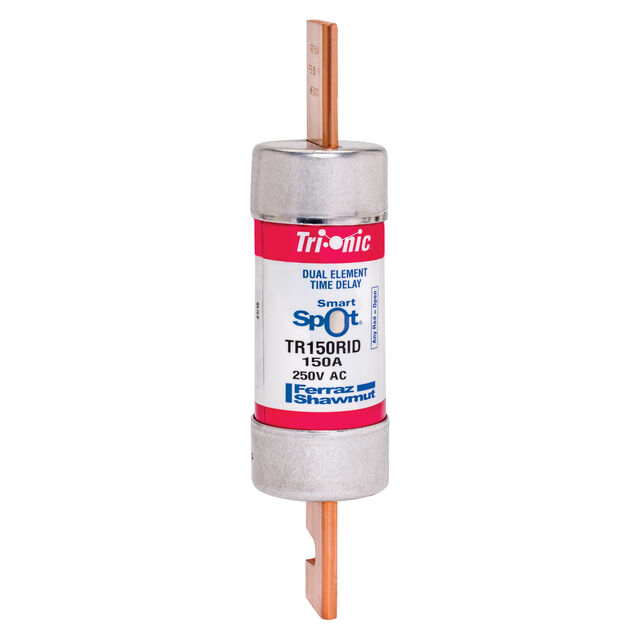

| Part Number | TR150RID | TR1-6/10R | TR1/2R | TR100R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 250V 150A TD RK5 FUSE SMARTSPO | 250V 1 6/10A 2X9/10 RK5 T | FUSE,TIME DELAY,CLASS RK5,REJECT | 250V 100A 5 7/8X1 1/16 RK |
| Series | TR-R | TR-R | TR-R | TR-R |
| Packaging | Box | Box | Box | Box |
